MARTIN 18CH2166 WALL BRACKETS & PARTS

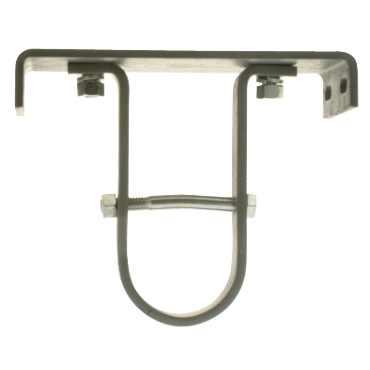

Martin 18CH2166 Screw Conveyor Hangers

Brand: MARTIN
SKU: 18CH2166
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Martin 18CH2166 is a reliable hanger designed for heavy-duty applications in screw conveyor systems. This model flush mounts inside the trough, allowing for dust-tight and weatherproof operation. Standard options include hard iron or bronze bearings, with alternatives available upon request.

  • Suitable for 18-inch diameter screw conveyors
  • Compatible with various bearing types
  • Designed for easy installation and maintenance

Product Highlights

The 18CH2166 hanger ensures excellent performance and durability in demanding environments.

Product Information

Standard Information

  • Brand: Martin
  • Part Number: 18CH2166
Technical Specifications
Coupling O.D.
3 inches
Mounting Distance (Drop)
12 1/8 inches
Bolt Hole Width
19 inches
Conveyor Diameter
18 inches
Bolt Hole Length
3 1/2 inches
Oil Pipe
No
Hanger Type
216
Weight
34.0 LB
EAN or UPC
697950102795
