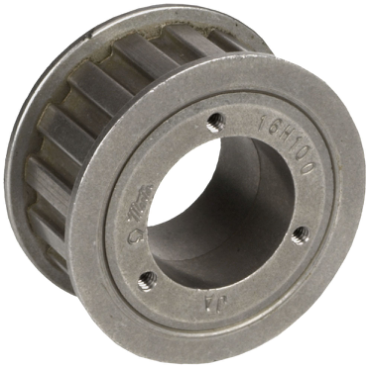

Martin 16H100JA H Series, 1/2 Pitch QD Bushed Timing Pulley

Product Description

The Martin 16H100JA is a timing pulley designed for efficient engagement with timing belts. It features evenly spaced grooves to ensure minimal friction and optimal performance. This pulley is suitable for various applications, including agitators, conveyors, and pumps.

• 0.5 inch belt pitch
• 1 inch belt width
• 16 teeth with a 2.492 inch outside diameter

Product Highlights

This timing pulley provides constant speed and features a lightweight design that requires no lubrication.

Product Information

Standard Information

• Brand: Martin
• Part Number: 16H100JA

Technical Specifications

• Belt Size: H
• Length Through Bore: 1.062 inches
• Outside Diameter: 2.492 inches
• Bushing Type: Quick Disconnect
• Belt Pitch: 0.5 inches
• Type: EF-1
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.25 inches
