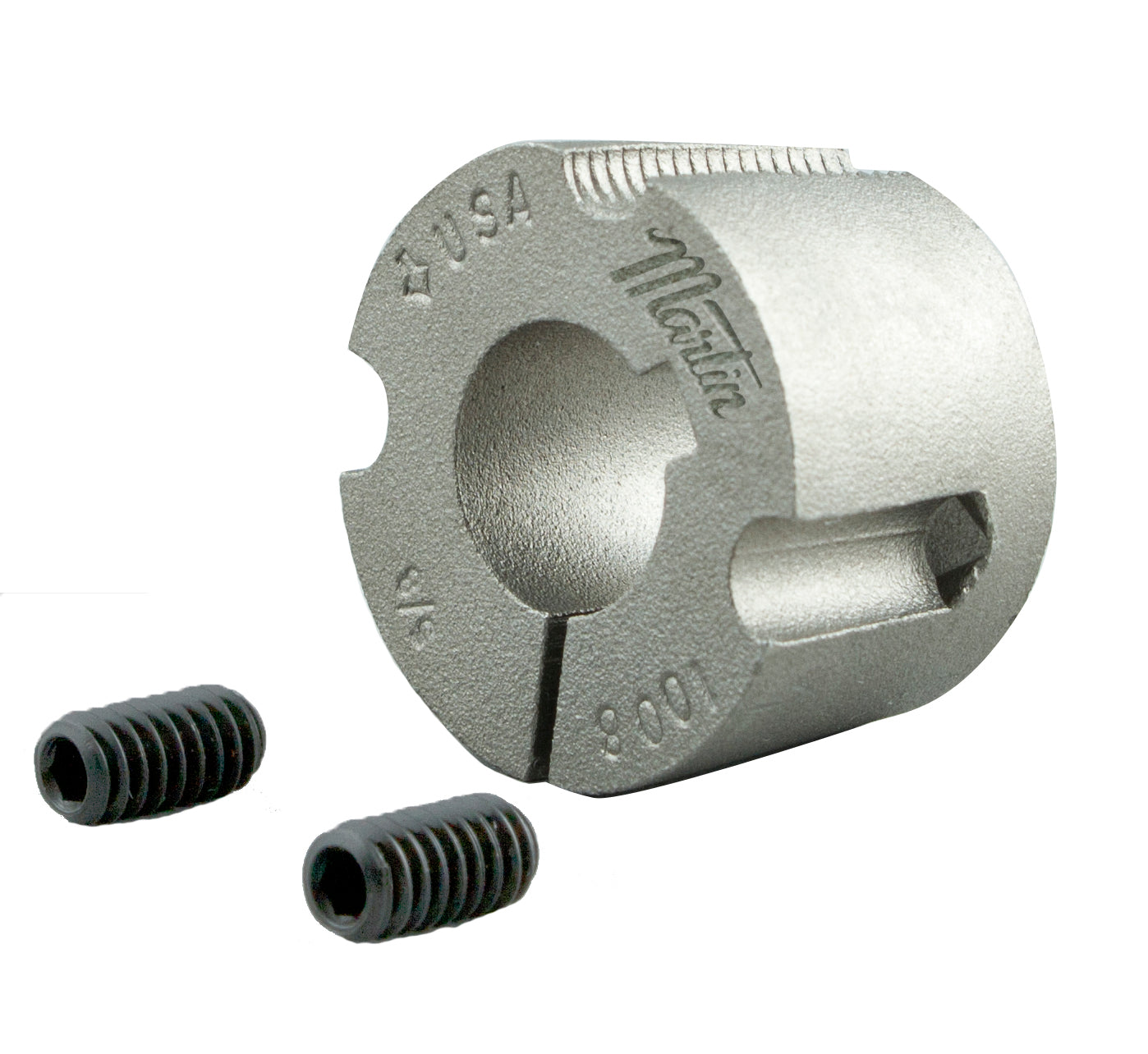

Martin 161511/8 Standard Taper Lock Bushing 1-1/8 in Dia Bore 161511/8

Product Description

The Martin 161511/8 Standard Taper Lock Bushing is essential for efficient mechanical assemblies. This specific bushing features a bore diameter of one and one-eighth inches, allowing for secure and precise fittings in various applications.

• Designed for flush mounting without a flange
• Manufactured from durable steel material
• Compatible with other taper bushings

Product Highlights

Utilized in power transmission systems, this bushing facilitates reliable connections between shafts and components.

Product Information

Standard Information

• Manufacturer: Martin Sprocket & Gear
• Type: Standard Taper Lock Bushing

Technical Specifications

• Bore Diameter: 1-1/8 in
• Barrel Diameter: 2-1/4 in
• Hub Diameter: 3 in
• Taper: 8 deg
• Bolt Circle Diameter: 2-1/8 in
• Number of Bolt Holes: 2
• Screw Size: 3/8-16 x 5/8 in
• Torque Rating: 4300 in-lb
• Overall Length: 1-1/2 in
• Keyway Size: 1/4 x 1/8 in
• Material: Steel
• Standards/Approvals: ANSI B15.1
• Country of Origin: US
