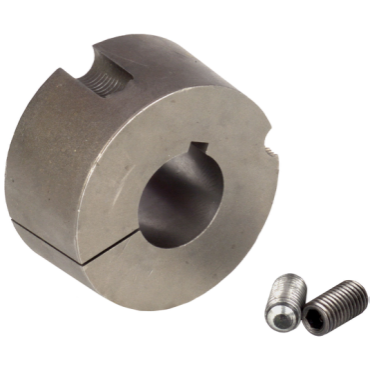

Martin 161022MM Taper Lock Bushing 22 mm Bore

Product Description

The Martin 161022MM taper lock bushing is designed for reliable performance in various applications. With a bore size of twenty-two millimeters, it provides a secure fit for various shaft sizes. Ideal for use on sprockets, sheaves, and pulleys, this bushing ensures optimal clamping force.

• Bore size: 22 mm
• Torque capacity: 358.333 lbf
• Includes two cap screws for secure installation

Product Highlights

This product features a clean and compact design that allows for flush mounting and no protruding parts, contributing to its efficiency and ease of use.

Product Information

Standard Information

• Brand: Martin
• MPN: 161022MM

Technical Specifications

• Bore Size: 22 mm
• Torque Capacity: 358.333 lbf
• Bore with Shallow Key [MAX]: 1 5/8 inches
• Set Screw Size: 3/8 inches
• Bolt Circle Diameter: 2 1/8 inches
• Bore Type: Metric
• Keyway Size: 6 mm x 2.8 mm
• Bore with Full Keyway [MAX]: 1 1/2 inches
• Length Through Bore: 1 inch
• Wrench Torque: 15 lbf
• Material: Steel
• Weight: 0.84 lbs
• Bushing Series: 1610
