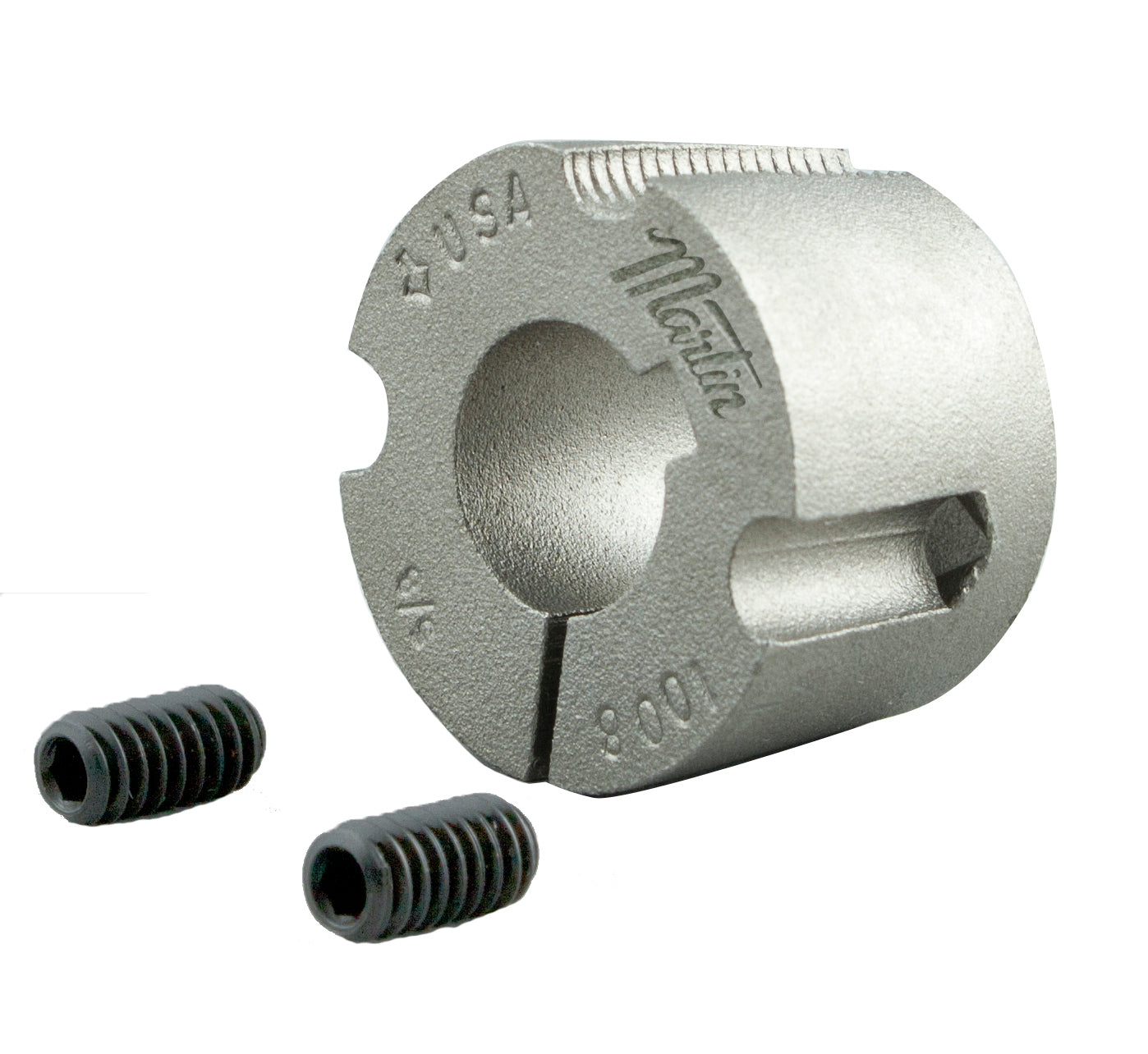

Martin 161011/8 1610 1 1/8 Standard Taper Lock Bushing

Product Description

The Martin 161011/8 is a standard taper lock bushing designed for reliable shaft connection in various applications. It features a bore diameter of one and one-eighth inches and a barrel diameter of two and one-fourth inches. This bushing is constructed from steel for durability.

• Bore diameter of one and one-eighth inches
• Torque rating of 4300 inch-pounds
• ANSI B15.1 standards compliance

Product Highlights

The Martin taper lock bushing is suitable for flush mounting and works well in power transmission systems.

Product Information

Standard Information

• Brand: Martin
• Manufacturer Part Number: 161011/8

Technical Specifications

• Bore Diameter: 1-1/8 inches
• Barrel Diameter: 2-1/4 inches
• Hub Diameter: 3-1/4 inches
• Overall Length: 1 inch
• Torque Rating: 4300 inch-pounds
• Taper: 8 degrees
• Number of Bolt Holes: 2
• Keyway Size: 1/4 x 1/8 inches
• Material: Steel
• Standards: ANSI B15.1
• Screw Size: 3/8-16 x 5/8 inches
• Bolt Circle Diameter: 2-1/8 inches
