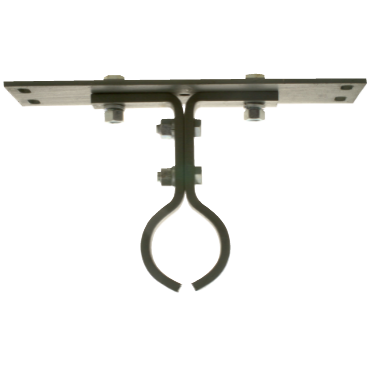

Martin 14CH2205 Screw Conveyor Hangers

Product Description

The Martin 14CH2205 Screw Conveyor Hangers are designed for use with fourteen inch diameter screw conveyors. These hangers are made for mounting on trough flanges. They allow for efficient material flow with minimal obstruction. This model does not require dust-tight or weatherproof features, making it suitable for various applications.

• Compatible with fourteen inch diameter screws
• Friction-type bearing for reliable performance
• Designed to minimize obstruction of material flow

Product Highlights

Style 220 hangers are efficient solutions for screw conveyor systems.

Product Information

Standard Information

• Brand: Martin
• MPN: 14CH2205

Technical Specifications

• Bolt Hole Width: 17 3/4 inches
• Bolt Hole Length: 2 1/2 inches
• Coupling O.D.: 2 7/16 inches
• Conveyor Dia.: 14 inches
• Mounting Distance (Drop): 9 3/4 inches
• Oil Pipe: No
• Hanger Type: 220
• Weight: 26.0 lbs
• EAN or UPC: 697950096476
