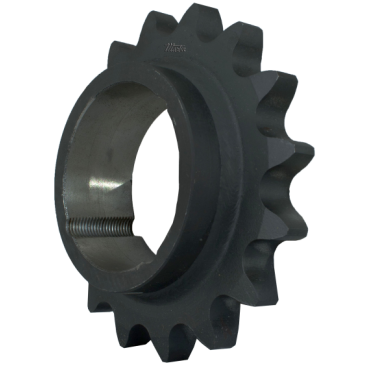

Martin 140BTB13 Bushing Bore Roller Chain Sprocket - Taper Locking, 140 / 1-3/4 in, 13 Teeth, 3020 Bushing

Product Description

The Martin 140BTB13 is a bushing bore roller chain sprocket designed for standard roller chains. This product features a taper locking mechanism, which ensures a secure fit onto the shaft. The sprocket is made of high carbon steel for durability and strength.

• Compatible with both ANSI and other manufacturers' taper bushings.
• Manufactured with precise machining for quality performance.
• Meets or exceeds industry standards.

Product Highlights

The Martin 140BTB13 sprocket is ideal for various mechanical power transmission applications, providing longevity and reliable performance. It is suitable for use in industries where efficiency and durability are necessary.

Product Information

Standard Information

• Brand: Martin
• MPN: 140BTB13

Technical Specifications

• Number of Teeth: 13
• Chain Number & Pitch: 140 / 1-3/4 in
• Pitch Diameter: 7.3125 in
• Outside Diameter: 8.1500 in
• Overall Width: 2 in
• Bushing Bore Range: 15/16 to 3 in
• Hub Diameter: 5-1/4 in
• Length Through Bore: 2.0000 in
