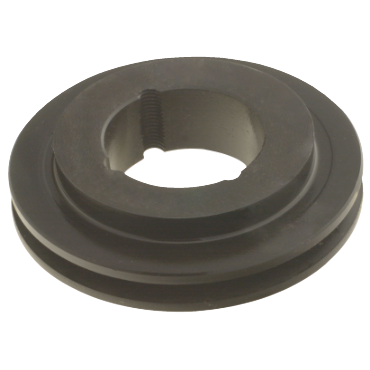

Martin 13V800TB 3V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 13V800TB is part of the 3V Series Hi-Cap Wedge Taper Bushed Sheave. This product is designed for reliable performance in various industrial applications. It features a taperlock bushing and a cast iron construction for durability and strength.

• 3V belt size with a pitch diameter of 7.95 inches
• Outside diameter of 8 inches, accommodating multiple applications
• Interchangeable with other manufacturers' bushings

Product Highlights

This sheave offers a statically balanced design to handle rim speeds up to 6,500 ft/min, making it suitable for high-performance settings.

Product Information

Standard Information

• Brand: Martin
• MPN: 13V800TB

Technical Specifications

• Belt Size: 3V
• Outside Diameter: 8 inches
• Pitch Diameter: 7.95 inches
• Bore Range (Min): 0.5 inches
• Bore Range (Max): 2.5 inches
• Bushing Series: 2517
• Grooves: 1
• Weight: 8.5 lbs
• Material: Cast Iron
• Bushing Type: Taperlock
• Length Through Bore: 1.75 inches
• Face Width: 0.6875 inches
