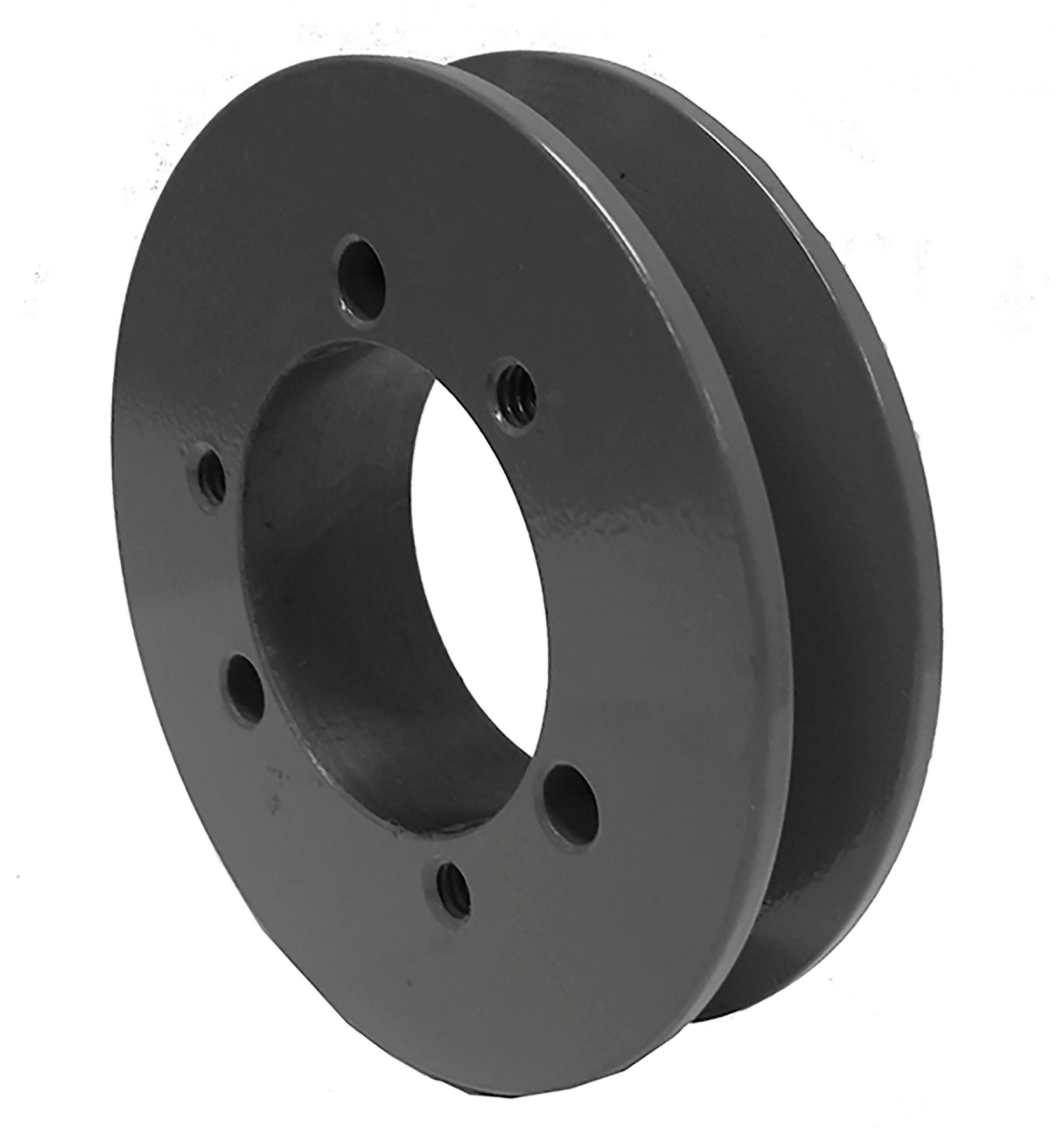

Martin 13V600SH Bushing Bore V-Belt Pulley - 3V Belt Section - 1 Groove - 5.95 in Pitch Dia. - 6 in O.D.

Product Description

The Martin 13V600SH is a bushing bore V-belt pulley suitable for various mechanical applications. This product features one groove and has a pitch diameter of five point nine five inches. The overall diameter of the pulley is six inches. It utilizes an SH series bushing and is made from steel material. This pulley meets several industry standards for compatibility and performance.

• Interchangeable with other manufacturer’s QD bushings
• Statically balanced for smooth operation
• Made of Class 30 gray iron

Product Highlights

The Martin 13V600SH is designed for optimal performance in belt drive systems, ensuring reliable operation.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Pitch Diameter: 5.95 in
• Outside Diameter: 6.0000 in
• Face Width: 0.6875 in
• Number of Grooves: 1
• Bushing Bore Range: 0.5000 to 1.6875 in
• Length Through Bore: 1.3125 in
• Overall Width: 11/16 in
• Storage Dimension Length: 6 in
• Storage Dimension Width: 6
• Storage Dimension Height: 1.0625 in
