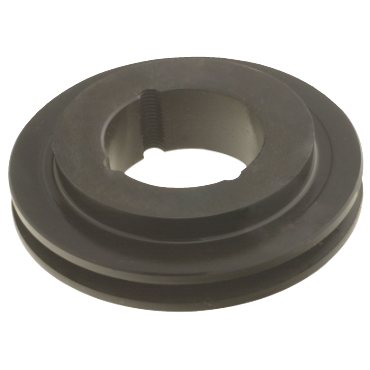

Martin 13V412TB 3V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 13V412TB is a 3V Series Hi-Cap Wedge Taper Bushed Sheave designed for high performance. This sheave offers excellent compatibility and utility in various mechanical applications.

• Compatible with 3V belt size
• Interchangeable with other manufacturers' bushings
• Designed for rim speeds up to 6,500 feet per minute

Product Highlights

Choose the Martin 13V412TB for reliable operation and performance in heavy-duty applications. It is built from high-quality materials for longevity.

Product Information

Standard Information

• Brand: Martin
• MPN: 13V412TB

Technical Specifications

• Belt Size: 3V
• Outside Diameter: 4.12 inches
• Pitch Diameter: 4.07 inches
• Bushing Series: 1610
• No. of Grooves: 1
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.5 inches
• Material: Steel
• Weight: 2.0 lbs
