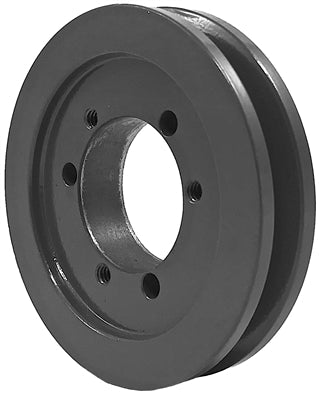

Martin 13V412SH Bushing Bore V-Belt Pulley 3V Belt Section 1 Groove

Product Description

The Martin 13V412SH is a bushing bore V-belt pulley designed for the 3V belt section. This pulley features one groove and has a pitch diameter of four point zero seven inches, with an outside diameter of four point one two inches. The pulley is constructed from cast iron, which provides durability and reliability in various applications.

• Flexible equipment design
• Limits shock and vibration
• Quiet operation

Product Highlights

This pulley is easy to maintain and does not require lubrication, making it suitable for various industrial applications. It operates with a quick disconnect type bushing and is designed to accommodate shock loads effectively.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Material: Cast Iron
• Pitch Diameter: 4.07 inches
• Outside Diameter: 4.12 inches
• Face Width: 0.6875 inches
• Bushing Bore Range: 0.5000 to 1.6875 inches
• Number Of Grooves: 1
• Bushing Series: SH
• Length Through Bore: 1.3125 inches
