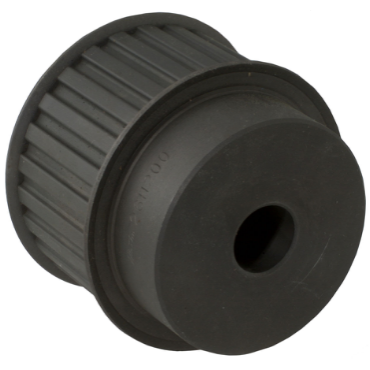

Martin 13L050 Reborable Timing Pulley

Product Description

The Martin 13L050 is a reborable timing pulley designed for precise and efficient operation. Its design features evenly spaced axial grooves that engage positively with belt teeth, ensuring minimal friction during operation.

• 0.375 inches belt pitch
• 0.5 inches belt width
• 13 teeth for optimal performance

Product Highlights

This pulley is made from steel and is suitable for various applications that require reliable timing mechanisms. It is essential to use at least one flanged pulley due to the gentle side thrust of timing belts.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100813287

Technical Specifications

• Hub Projection: 1/2 inches
• Bore Range [Min]: 0.375 inches
• Material: Steel
• Hub Type: B
• No. of Screws: 1
• Hub Diameter: 1 1/8 inches
• Bore Type: Bushed
• No. of Teeth: 13
• Outside Diameter: 1.522 inches
• Belt Size: L050
• Belt Pitch: 0.375 inches
• Belt Width: 0.5 inches
• Weight: 0.3 LB
