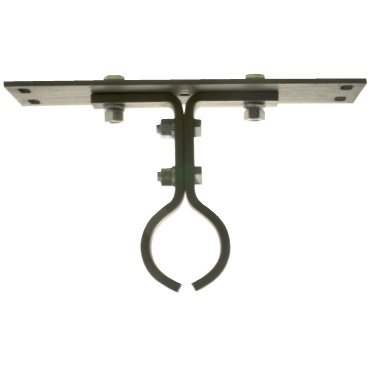

Martin 12CH2206-O Screw Conveyor Hangers

Product Description

The Martin 12CH2206-O is a screw conveyor hanger designed for reliable support in material handling applications. This hanger type is suitable for mounting on top of trough flanges, making it a good choice for setups where dust-tight or weatherproof operation is not essential. It is designed to allow unobstructed material flow in high-capacity conveyors.

• Compatible with twelve-inch conveyor diameter
• Includes a three-inch coupling diameter
• Weight of twenty-eight pounds

Product Highlights

The 12CH2206-O hanger features a friction-type bearing and comes with an oil pipe for lubrication. Its design minimizes the obstruction during material transport, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 12CH2206-O

Technical Specifications

• Hanger Type: 220
• Coupling O.D.: 3 inches
• Conveyor Dia.: 12 inches
• Bolt Hole Length: 2.5 inches
• Bolt Hole Width: 15.75 inches
• Mounting Distance (Drop): 8.25 inches
• Weight: 28 pounds
• EAN or UPC: 697950091488
