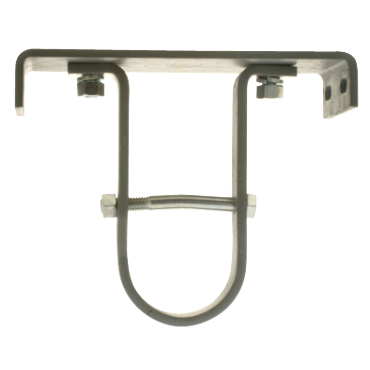

Martin 12CH2166 Screw Conveyor Hangers 12 Diameter

Product Description

The Martin 12CH2166 represents a reliable choice for heavy-duty applications in conveyor systems. This hanger is designed for a twelve-inch diameter screw with a three-inch bore, providing robust support in demanding environments. The design allows for flush mounting inside the trough, ensuring a dust-tight and weatherproof operation. The standard equipment includes hard iron or bronze bearings, though other bearing types are available if needed. These hangers are optimal for industries that require durable conveyor setups.

• Flush mounted for a secure fit
• Compatible with twelve-inch diameter screws
• Designed for heavy-duty applications

Product Highlights

This hanger features ease of installation and maintenance, aiding productivity in material handling scenarios.

Product Information

Standard Information

• Product Name: 12CH2166 | Screw Conveyor Hangers
• Brand: Martin

Technical Specifications

• Conveyor Diameter: 12 inches
• Oil Pipe: No
• Mounting Distance (Drop): 7.75 inches
• Coupling O.D.: 3 inches
• Hanger Type: 216
• Bolt Hole Length: 2.5 inches
• Bolt Hole Width: 13 inches
• Weight: 21.0 pounds
• EAN or UPC: 697950091419
