MARTIN 12CH2164 PIPE FITTINGS

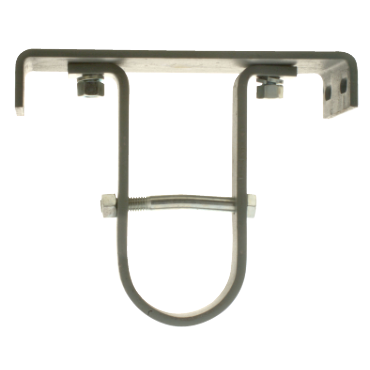

Martin 12CH2164 Screw Conveyor Hangers

Brand: MARTIN
SKU: 12CH2164
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Martin 12CH2164 is a screw conveyor hanger designed for heavy-duty applications. This hanger is flush mounted inside the trough, allowing for dust-tight and weatherproof operation. It typically comes with hard iron or bronze bearings, but other bearing options are available upon request.

  • Suitable for 12-inch diameter screw conveyors
  • Flush-mounted design for enhanced sealing
  • Constructed for durability with various bearing options

Product Highlights

This hanger is ideal for use in rugged environments where reliability and performance are crucial.

Product Information

Standard Information

  • Brand: Martin
  • MPN: 12CH2164
Technical Specifications
Bolt Hole Length
2.5 inches
Bolt Hole Width
13 inches
Conveyor Diameter
12 inches
Mounting Distance (Drop)
7.75 inches
Oil Pipe
No
Hanger Type
216
Coupling O.D.
2 inches
Weight
14.0 lbs
EAN or UPC
697950091372
