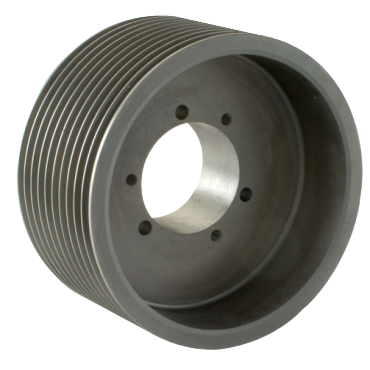

Martin 128V1400M Bushing Bore V-Belt Pulley - 8V Belt Section, 12 Groove, 13.8 in Pitch Dia., 14 in O.D.

Product Description

The Martin 128V1400M is a bushing bore V-belt pulley designed for the 8V belt section with twelve grooves. This pulley features a pitch diameter of thirteen point eight inches and an outside diameter of fourteen inches. It is constructed from durable cast iron, ensuring reliable performance in various applications.

• Interchangeable with other manufacturers' QD bushings
• Precise machining for consistent finish and quality
• Statically balanced with maximum rim speed marked

Product Highlights

This pulley is an excellent choice for mechanical power transmission in industrial settings.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Weight: 250.00 lbs
• Material: Cast Iron
• Bore Type: Bushed
• Face Width: 13.8750 in
• Pitch Diameter: 13.8 in
• Overall Width: 13.875 in
• Bushing Series: M
• Outside Diameter: 14.0000 in
• Belt Section Size: 8V
• Number of Grooves: 12
• Bushing Bore Range: 2.0000 to 5.5000 in
• Length Through Bore: 6.75 in
• Pulley Construction: Solid
• Mounting Type: Reversible
• Sheave Drawing Type: A
• Manufacturer UPC Number: 697950090566
