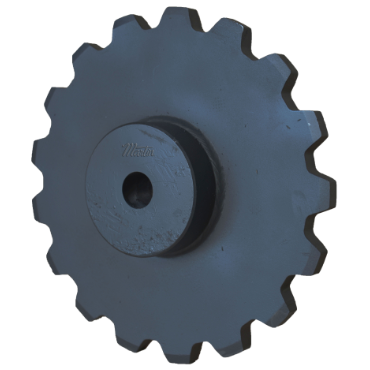

Martin 124C15 Accutorch Engineering Class Sprocket - Solid Hub, 15 Teeth, 1.5000 in Bore Diameter, 19.2400 in Pitch Diameter

Product Description

The Martin 124C15 Accutorch Engineering Class Sprocket is designed for multiple engineering class chains, particularly in style A and C. This high-quality sprocket includes a solid hub and is manufactured from durable high carbon steel. It is suitable for applications requiring precise performance and reliability. This sprocket can be used in various settings, from manufacturing to industrial machinery.

• Available in solid and split styles.
• Manufactured from high carbon steel.
• Not intended to replace cut tooth roller chain sprockets.

Product Highlights

The Martin sprocket is engineered for both mill and engineering class chains, ensuring consistent high performance.

Product Information

Standard Information

• Brand: Martin
• MPN: 124C15

Technical Specifications

• No. of Strands Across: 1
• Width Across Teeth: 1.5 in
• Material: Steel
• Hub Dia.: 6 3/4 in
• Pitch Diameter [Min]: 19.24 in
• Bore Range [Max]: 4.313 in
• No. of Teeth: 15
• Chain Pitch: 4 in
• Hardened Teeth: Without Hardened Teeth
• Length Through Bore: 6 in
• Chain Strands: Single
• Bore Range [Min]: 1.5 in
• Stock Bore Size: 1 1/2 in
• Outside Dia. [Min]: 20.194 in
• Hub Length Thru: 4 1/2 in
• Pitch Diameter: 19.24 in
• Inch/Metric: Inch
• Bore Dia. [Max]: 4 3/8 in
• Chain No.: 124
• Sprocket Style: C
• Outside Dia.: 20.194 in
• Bore Type: Reborable
• Weight: 168.0 LB
• EAN or UPC: 697950068428
