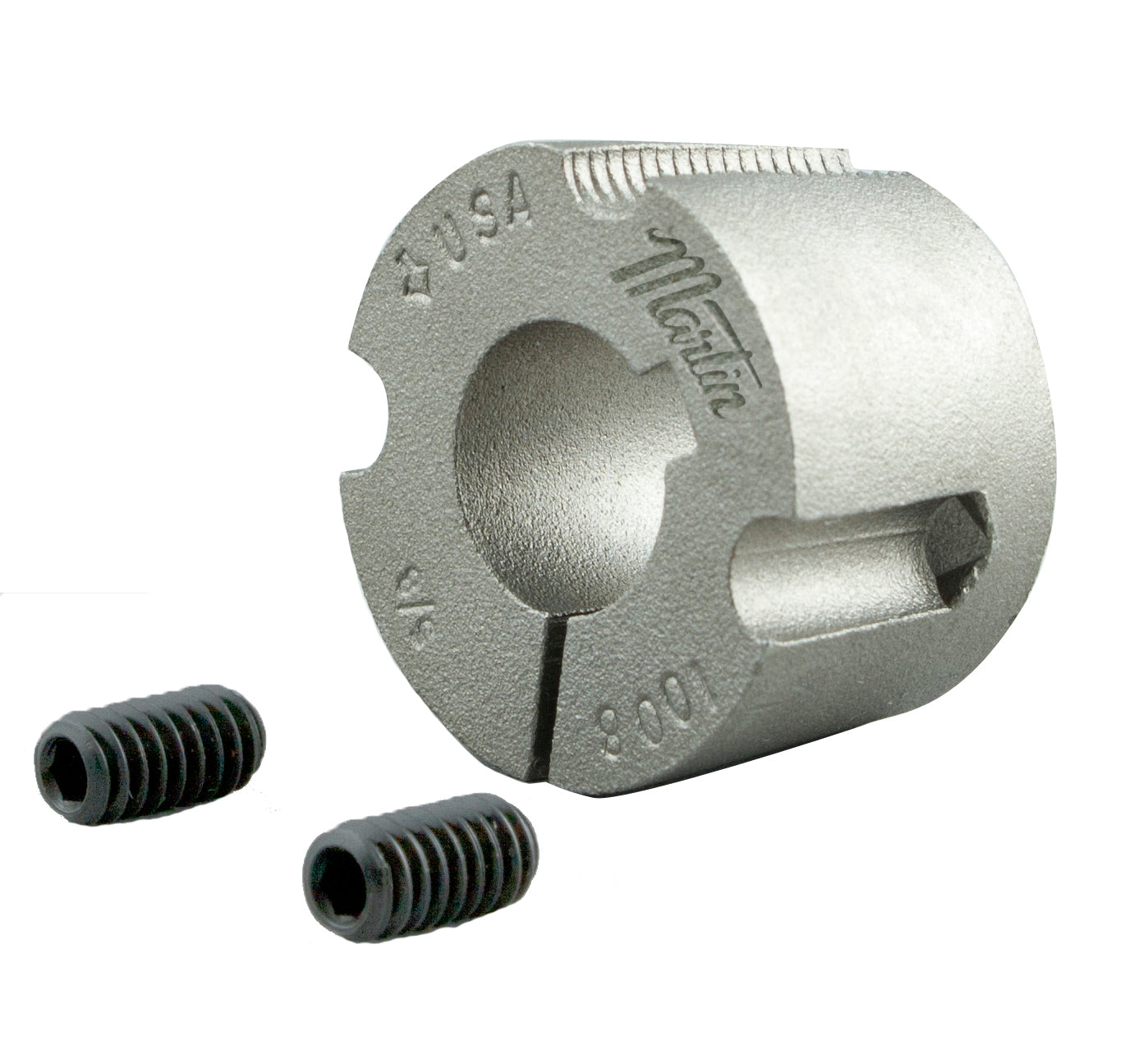

Martin 121011/8 1210 1 1/8 Standard Taper Lock Bushing

Product Description

The Martin Taper Lock Bushing with MPN 121011/8 is built for reliable performance in power transmission applications. It features a bore diameter of one and one-eighth inches and is made from durable steel. This product is suitable for use in various machinery where secure mounting is essential.

• Designed for flush mounting without a flange.
• Meets or exceeds industry standards for precision and quality.
• Interchangeable with other taper bushings for versatile applications.

Product Highlights

This bushing is engineered for high torque applications and can support a torque rating of up to three thousand six hundred inch-pounds.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Standard Taper Lock Bushing

Technical Specifications

• Bore Diameter: 1-1/8 in
• Barrel Diameter: 1-7/8 in
• Hub Diameter: 2-7/8 in
• Taper: 8 deg
• Overall Length: 1 in
• Bolt Circle Diameter: 1-3/4 in
• Number of Bolt Holes: 2
• Screw Size: 3/8-16 x 5/8 in
• Torque Rating: 3600 in-lb
• Material: Steel
• Keyway Size: 1/4 x 1/8 in
• Standards: ANSI B15.1
• Country of Origin: US
