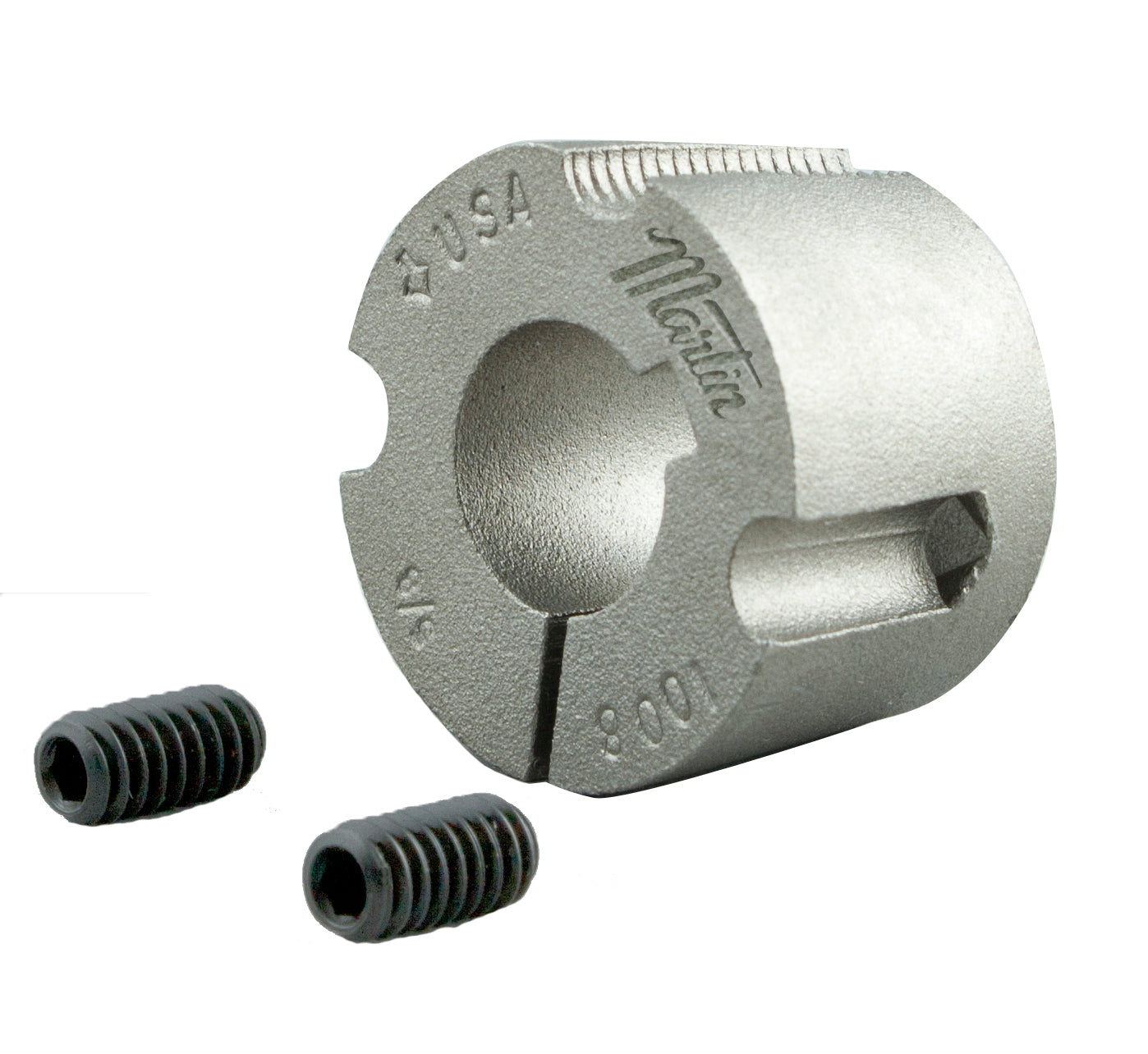

Martin 121011/4 1210 1 1/4 Standard Taper Lock Bushing

Product Description

The Martin 121011/4 is a standard taper lock bushing designed for effective power transmission. The product features a bore diameter of one and one-quarter inches and a barrel diameter of one and seven-eighths inches. It offers a robust design suitable for various industrial applications.

• High torque rating up to 3600 in-lb
• Constructed from durable steel material
• Designed for flush mounting without a flange

Product Highlights

This taper lock bushing is ideal for robust and lasting performance in power transmission setups.

Product Information

Standard Information

• Manufacturer: Martin Sprocket & Gear
• MPN: 121011/4

Technical Specifications

• Bore Diameter: 1-1/4 inches
• Barrel Diameter: 1-7/8 inches
• Hub Diameter: 2-7/8 inches
• Overall Length: 1 inch
• Torque Rating: 3600 in-lb
• Keyway Size: 1/4 x 1/8 inches
• Number of Bolt Holes: 2
• Bolt Circle Diameter: 1-3/4 inches
• Screw Size: 3/8-16 x 5/8 inches
• Taper: 8 degrees
• Standards: ANSI B15.1
• Material: Steel
