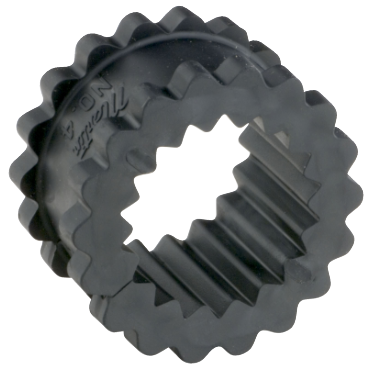

Martin 10JEMS QUADRA-FLEX Coupling Sleeve 80 hp @ 1800 rpm

Product Description

The Martin 10JEMS is a QUADRA-FLEX coupling sleeve designed for efficient torque transfer in various machinery applications. This sleeve features two flanges with internal teeth to securely engage an elastomeric flexible sleeve, ensuring a stable connection. The installation process is straightforward and does not require lubrication, making it maintenance-free. The design dampens vibrations effectively and helps control shock, enhancing performance.

• Size 10 coupling sleeve
• Made from TPR material
• Maximum torque rating of 2,875.0 inch lb

Product Highlights

The 10JEMS sleeve is suitable for applications requiring a reliable and durable coupling solution.

Product Information

Standard Information

• Brand: Martin
• Part Number: 10JEMS

Technical Specifications

• HP @ RPM: 80 hp @ 1800 rpm
• Torsional Stiffness: 980 Inch Pounds/Radian
• Color: Black
• Temperature Range Max: 275 °F
• Insert Style: One Piece Split
• Outside Diameter: 7 1/16 inches
• Temperature Range Min: -50 °F
• Torque Rating Max: 2,875.0 inch lb
• RPM Max: 3,600 rpm
• Sleeve Type: JEMS
• Coupling Size: 10
• Material: TPR
• Weight: 2.32 lb
• EAN or UPC: 697950275123
