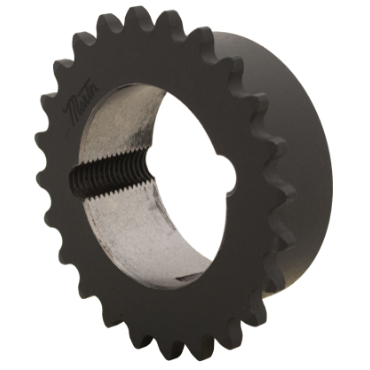

Martin 10BTB19H Taper Lock Bushed Sprocket - Metric - 19 Teeth - 1610 Bushing

Product Description

The Martin 10BTB19H is a taper lock bushed sprocket designed for #10B chains. This product features 19 teeth and is constructed from high carbon steel.

• Made of high carbon steel
• Includes hardened teeth for durability
• Meets or exceeds ISO standards for precision

Product Highlights

This sprocket is built with hardened teeth and precise machining processes for consistent performance and longevity.

Product Information

Standard Information

• Bushing Type: Taper Lock
• Chain No.: 10B

Technical Specifications

• Bushing Bore [Max]: 38.1 mm
• Bore Type: Bushed
• No. of Strands Across: 1
• Type: B
• Overall Length: 25.4 mm
• Length Through Bore: 25.4 mm
• Inch/Metric: Metric
• Pitch Diameter: 96.45 mm
• Hub Length: 16.43 mm
• No. of Teeth: 19
• Material: Steel
• Width Across Teeth: 8.97 mm
• Outside Dia.: 106.13 mm
• Chain Pitch: 0.625 in, 15.875 mm
• Root Diameter: 86.29 mm
• Weight: 1.41 LB
