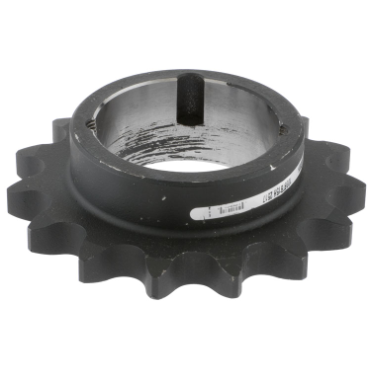

Martin 100BTB15H Taper Lock Bushed Sprocket

Product Description

The Martin 100BTB15H is a taper lock bushed sprocket designed for roller chain applications. It features hardened teeth for durability and comes with a bushing style of 2517. This product is suited for use in heavy-duty environments.

• Sprocket for #100 chain
• 15 teeth with hardened teeth
• Sprocket style B with taper lock design

Product Highlights

Hardened teeth provide extended life for chain and sprocket. Ideal for speeds over 600 rpm and ratios greater than four to one.

Product Information

Standard Information

• Brand: Martin
• MPN: 100BTB15H

Technical Specifications

• Chain Pitch: 1.250 in
• No. of Teeth: 15
• Bushing Type: Taper Lock
• Hub Diameter: 4 1/4 in
• Bushing Bore [Min]: 1/2 in
• Bushing Bore [Max]: 2 1/2 in
• Material: Steel
• Overall Length: 1 3/4 in
• Outside Diameter: 6.6310 in
• Weight: 5.1 LB
