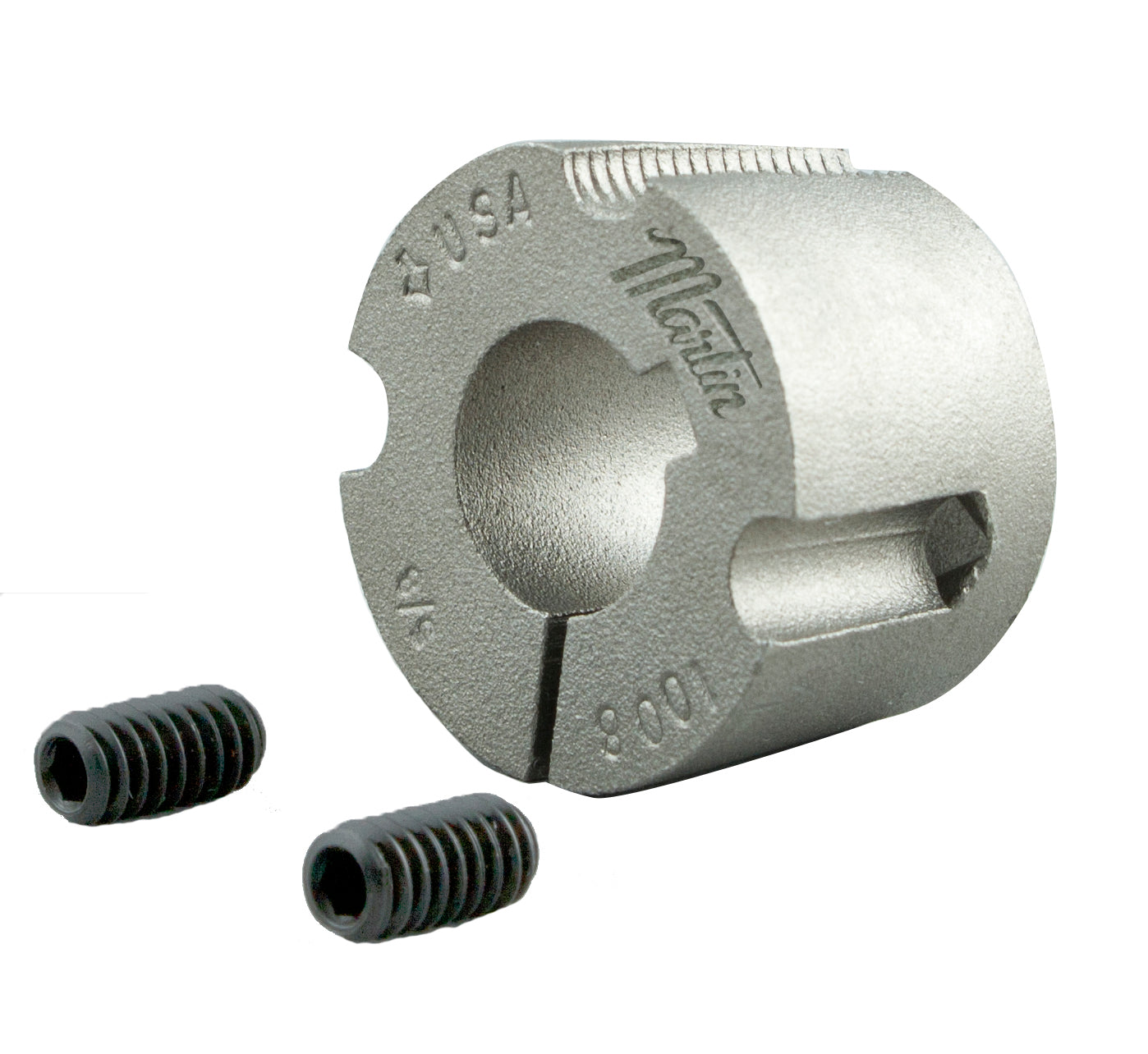

Martin 10081 Standard Taper Lock Bushing, 1 in Dia Bore, 1.386 in Dia Barrel, 7/8 in OAL

Product Description

Martin 10081 is a standard taper lock bushing designed for use in various power transmission applications. With a bore diameter of 1 inch and an overall length of seven-eighths inch, this bushing ensures reliable performance in demanding environments. Its construction features a steel body for durability and strength, capable of withstanding a torque rating of 1200 inch-pounds.

• Compatible with multiple pulley and sheave systems
• Designed for flush mounting without a flange
• Meets ANSI B15.1 standards for reliability

Product Highlights

This taper lock bushing is ideal for effective mounting in industrial applications.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Standard

Technical Specifications

• Bore Diameter: 1 in
• Barrel Diameter: 1.386 in
• Hub Diameter: 1-15/16 in
• Overall Length: 7/8 in
• Torque Rating: 1200 in-lb
• Screw Size: 1/4-20 x 1/2 in
• Keyway Size: 1/4 x 1/16 in
• Number of Bolt Holes: 2
