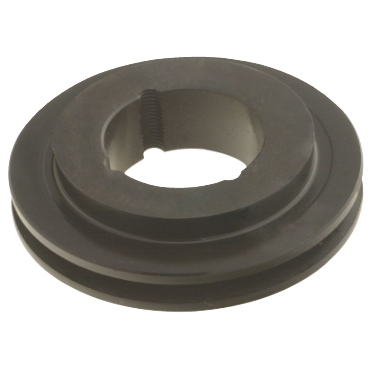

Martin 1-B-74-TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 1-B-74-TB A-B Series Combination Groove Conventional Taper Bushed Sheave is designed for high-performance operation. This sheave is suitable for A and B belt sizes and has a pitch diameter of seven point four inches. The outside diameter measures seven point seventy-five inches and features a bushing type of taperlock with a bore range from zero point five inches to two point five inches.

• Interchangeable with other manufacturers' sheaves
• Statically balanced for speeds up to six thousand five hundred feet per minute
• Constructed from cast iron for durability

Product Highlights

This sheave offers effective power transmission and is ideal for various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 1-B-74-TB

Technical Specifications

• Bore Type: Bushed
• Bore Range Maximum: 2.5 inches
• Bore Range Minimum: 0.5 inches
• Bushing Part Number: 2517
• Bushing Type: Taperlock
• Outside Diameter: 7.75 inches
• Pitch Diameter: 7.4 inches
• Weight: 9.4 lbs
