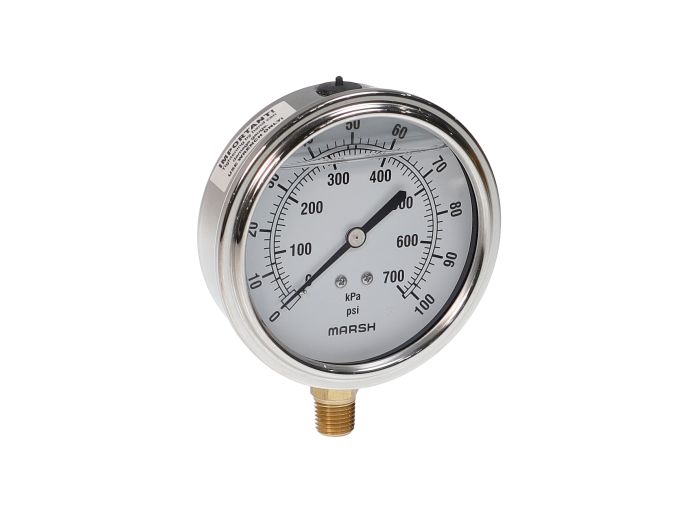

Marsh X32507P Gauge 0-100 psi

Product Description

The Marsh X32507P gauge is made for tough conditions and high durability. It is suitable for areas with vibration and pulsation. The glycerine-filled design offers cushioning to reduce pointer flutter and protect internal parts. This gauge measures from zero to one hundred psi and has a four-inch case with a one-quarter NPT connection.

• Glycerine filled for reduced vibration effects
• Stainless steel exterior and copper alloy components
• Dual scale showing psi and kPa measurements

Product Highlights

This gauge is ideal for various industrial applications, offering reliable readings in tough environments.

Product Information

Standard Information

• Manufacturer: Marsh
• Product Series: Severe Service

Technical Specifications

• Manufacturer Part Number: X32507P
• Range: 0-100 psi
• Case Size: 4 inches
• Material: Stainless Steel
• Connection: 1/4 NPT
• Weight: 0.86 lbs
• Accuracy: Plus/Minus 2-1-2% (ASME Grade A)
• Dial Face: Black markings on white
• Movement Material: Brass
• Ambient Temperature: Dry: -40 to 180F, Glycerine: 30 to 160F
