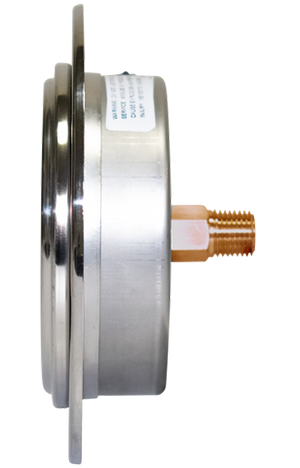

MARSH X32505P Severe Service Gauge 0 to 30 psi Copper Alloy

Product Description

The MARSH X32505P severe service gauge is suitable for tough conditions where pulsation and vibration occur. This device offers accurate pressure readings from zero to thirty psi. It is hermetically sealed to ensure dependable use in challenging environments.

• Provides reliable pressure measurements in harsh and demanding industrial and OEM environments.
• Filled with glycerin to offer a dampening effect and reduce pointer flutter.
• Ventable top fill plug for pressure relief and ease of venting after installation.

Product Highlights

This gauge is essential in operations requiring precise pressure monitoring. It is specifically designed for industrial applications where reliability and durability are critical.

Product Information

Standard Information

• Manufacturer: Marsh
• Product Series: Severe Service

Technical Specifications

• Case Size: 3.89 inches (100 mm) diameter
• Measuring Range: 0 to 30 psi
• Accuracy: ASME Grade A ±1/2% (±1% of range across middle half of scale)
• Case Material: 304 Stainless Steel
• Case Style: Rolled ring, hermetically sealed case
• Tube & Socket: Copper Alloy
• Movement: Brass
• Connection: 1/4 inch NPT
• Dial Standard: Dual scale psi & kPa
• Dial Color: Black markings on white
• Window: Polycarbonate
• Pointer: Aluminum, black painted
• Fill Medium: Glycerin
• Mount: Front Flange Panel Mount
• Vent: Rubber Plug
• Bezel: 304 Stainless Steel - Fixed
• Ambient Temperature: Dry: -40 to 180F, Glycerine: 30 to 160F, Silicone: -40 to 180F
• Internal Material: Copper Alloy
• Window Composition: Polycarbonate
• Dial Size: 4 inches
