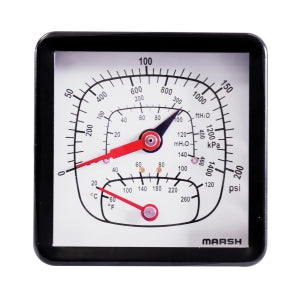

Marsh Bellofram Y22026 Tridicator 0-60 PSI

Product Description

The MARSH BELLOFRAM Y22026 tridicators are durable and cost-effective combination pressure and temperature instruments designed for commercial and industrial boiler and hot water applications. It features a 2-1/2 IN dial and measures within a range of 60 - 260 DEG F/20 - 120 DEG C and 0 - 60 PSI/0 - 130 FT H20.

• Durable
• Cost-effective
• Combination pressure and temperature instrument

Product Highlights

This tridicator is suitable for a wide variety of commercial and industrial boiler and hot water applications.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: Y22026

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 60 - 260 DEG F/20 - 120 DEG C And 0 - 60 PSI/0 - 130 FT H20
• Units Of Measure: DEG F/C, PSI/FT Of Water
• Connection Type: 1/4 IN NPT
• Connection Location: Center Back
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Dial Face: Black Markings On White
• Case: Black Painted Steel Case
• Lens: Glass Lens
• Pointer Material: Aluminum, Red Painted With Black Painted Set
• Tube Material: Copper Alloy
• Socket: Copper Alloy Socket
• Depth: 1.06 IN
• Diameter: 2.65 IN
• Case Material: Black Painted Steel
• Lens Material: Glass
• Socket Material: Copper Alloy
• Item Name: Tridicator
