Marsh Bellofram Y22016 Tridicator 3-1/2 1/2 LBM 0-200 PSI

Product Description

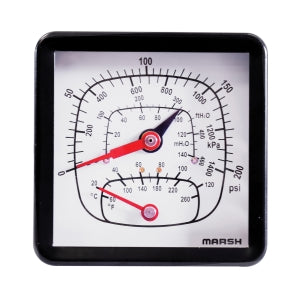

The MARSH BELLOFRAM Y22016 tridicator is a durable, cost-effective combination pressure and temperature instrument suitable for commercial and industrial boiler and hot water applications. It features a 3-1/2 IN dial with black markings on a white face, and measures in both DEG F/C and PSI/FT of Water. The tridicator has a 1/2 IN NPT lower back connection.

• Durable
• Cost-effective
• Combination pressure and temperature instrument

Product Highlights

This tridicator combines pressure and temperature measurement in one cost-effective instrument.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: Y22016

Technical Specifications

• Dial Size: 3-1/2 IN
• Measuring Range: 60 - 260 DEG F/20 - 120 DEG C And 0 - 200 PSI/0 - 460 FT H20
• Units Of Measure: DEG F/C, PSI/FT Of Water
• Connection Type: 1/2 IN NPT
• Connection Location: Lower Back
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Dial Face: Black Markings On White
• Case: Black Painted Steel Case
• Lens: Glass Lens
• Pointer Material: Aluminum, Red Painted With Black Painted Set
• Tube Material: Copper Alloy
• Socket: Copper Alloy Socket
• Case Material: Black Painted Steel
• Lens Material: Glass
• Socket Material: Copper Alloy
