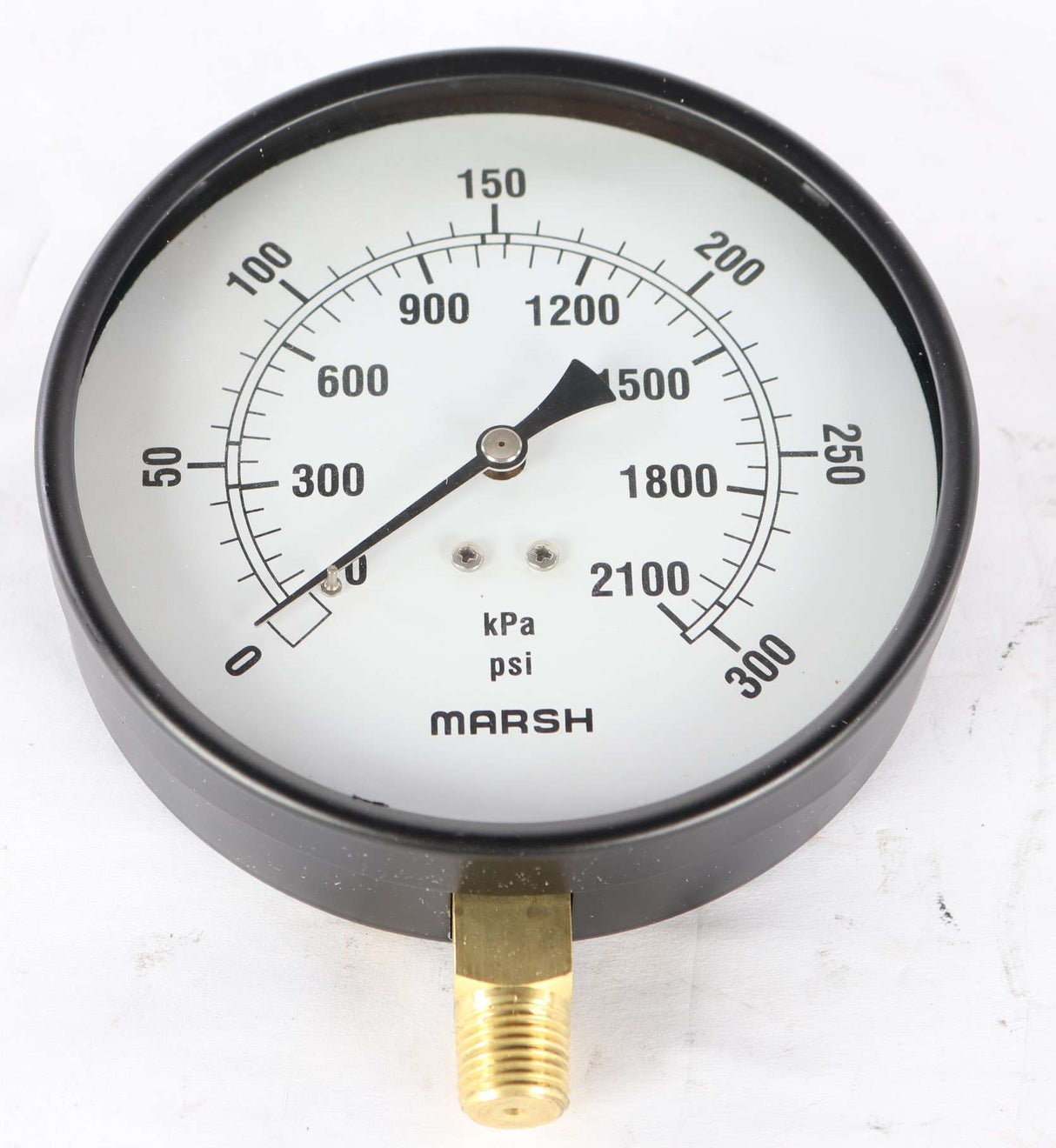

Marsh Bellofram J9058 Pressure Gauge 0-300 PSI 1/4 Lm

Product Description

The MARSH BELLOFRAM J9058 general service steel case gauge is designed for reliable pressure measurements. Suitable for use with water, oil, air, gas or other noncorrosive media from vacuum/compound through 5000 PSI. It features a 4-1/2 IN dial and measures from 0 - 300 PSI.

• Cost-effective
• General purpose
• Reliable pressure measurements

Product Highlights

This gauge is suitable for use with various noncorrosive media and provides accurate pressure readings.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: J9058

Technical Specifications

• Dial Size: 4-1/2 IN
• Measuring Range: 0 - 300 PSI
• Units Of Measure: PSI, KPA
• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Graduations: 5 Smallest, 50 Largest
• Dial Face: Black Markings On White
• Case Material: Black Steel
• Lens Material: Flat Glass
• Pointer Material: Black Aluminum
• Movement Material: Brass
• Tube Material: Copper Alloy
• Socket Material: Copper Alloy
• Length: 4.53 IN
• Width: 4.53 IN
• Depth: 1.22 IN
• Filled With: Dry
