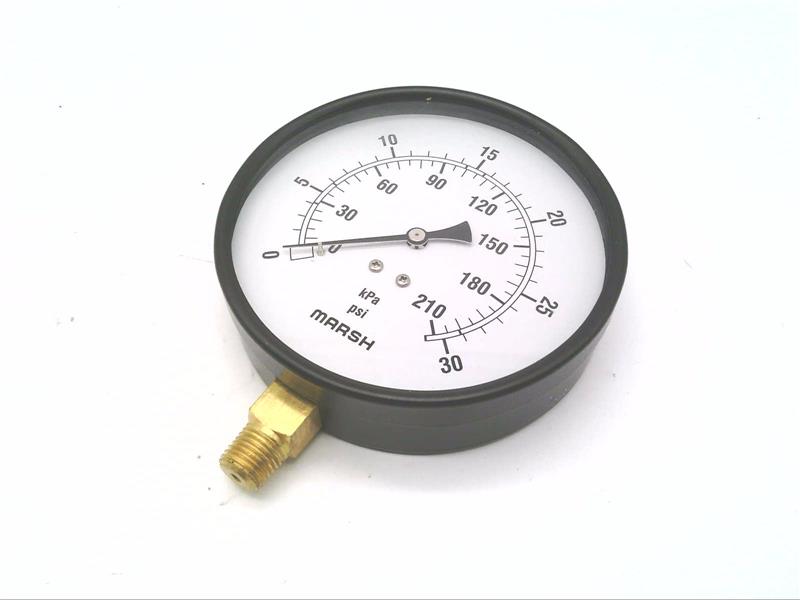

Marsh Bellofram J9042 Pressure Gauge 4-1/2 0-30 PSI 1/4 LM

Product Description

The Marsh Bellofram J9042 general service steel case gauge is designed for reliable pressure measurements. Suitable for use with water, oil, air, gas or other noncorrosive media from vacuum/compound through 5000 PSI. It features a 4-1/2 IN dial and measures from 0-30 PSI.

• Cost-effective
• General purpose
• Reliable pressure measurements
• Suitable for use with water, oil, air, gas or other noncorrosive media

Product Highlights

This pressure gauge is designed for general service and provides reliable pressure measurements for various media.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: J9042
• Country of Origin: United States

Technical Specifications

• Dial Size: 4-1/2 IN
• Measuring Range: 0 - 30 PSI
• Units Of Measure: PSI, KPA
• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Graduations: 1 Smallest, 5 Largest
• Dial Face: Black Markings On White
• Case Material: Black Steel
• Lens Material: Flat Glass
• Pointer Material: Black Aluminum
• Movement Material: Brass
• Tube Material: Copper Alloy
• Socket Material: Copper Alloy
• Length: 4.53 IN
• Width: 4.53 IN
• Depth: 1.22 IN
• MPN: J9042
• Brand: MARSH INSTRUMENTS
• Condition: New – Open box
• Filled With: Dry
• Model: J9042
