Product Description

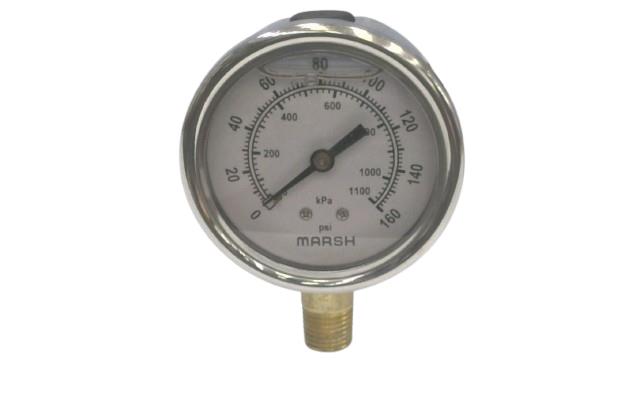

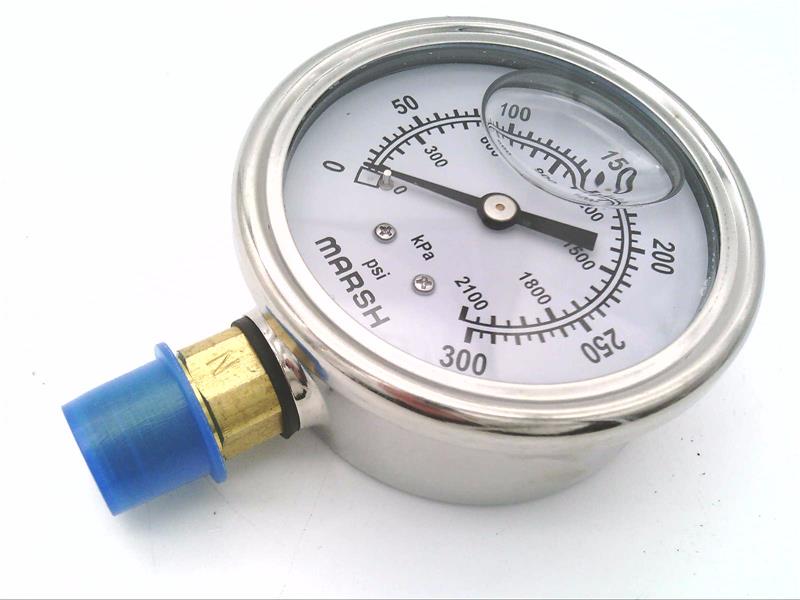

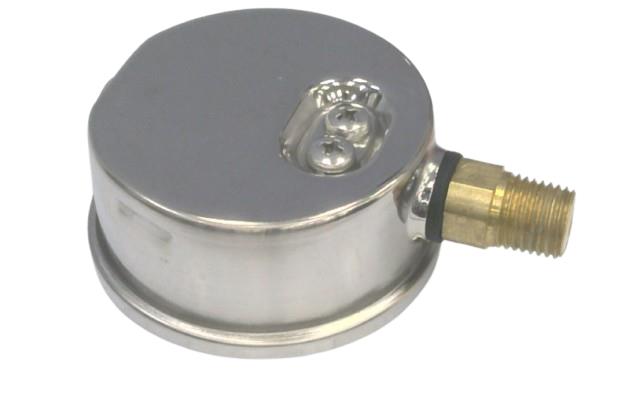

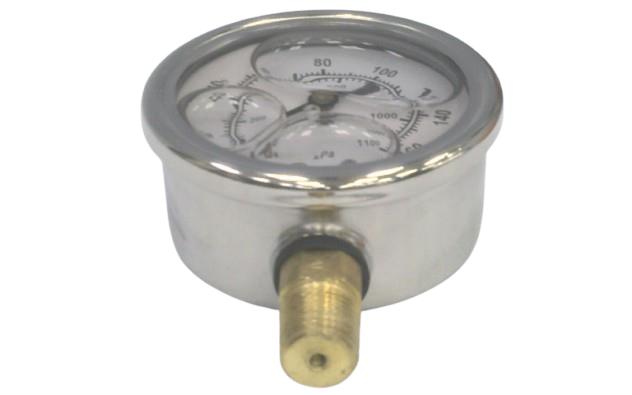

The MARSH BELLOFRAM J7652P is a severe service liquid filled gauge designed for rugged and harsh environments, especially where pulsation or vibration is present. This gauge offers a cushioning and dampening effect, reducing pointer flutter and lubricating the internals. It features black markings on a white dial face and a 304 stainless steel case.
- Liquid filled for cushioning and dampening
- Measuring range of 0 - 160 PSI
- 304 Stainless Steel Case
Product Highlights
Designed for demanding industrial and OEM environments, the J7652P gauge provides reliable pressure measurements with its liquid-filled design and durable construction.
Product Information
Standard Information
-
Brand: MARSH BELLOFRAM
-
Manufacturer Part Number: J7652P
-
Country of Origin: China
Technical Specifications
-
Measuring Range: 0 - 160 PSI
-
Units Of Measure: PSI, KPA
-
Connection: 1/4 IN NPT Lower
-
Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
-
Dial Face: Black Markings On White
-
Case Material: 304 Stainless Steel
-
Lens: Polycarbonate
-
Pointer Material: Black Aluminum
-
Movement: Brass
-
Tube Material: Copper Alloy
-
Socket Material: Copper Alloy
-
Filled With: Glycerin
-
Dial Size: 2-1/2 IN
-
Manufacturer: MARSH
-
Series: Severe Service Series
-
Model: J7652P
-
Case Type: Plain
-
Primary Range: 0-160 psi
-
Secondary Scale: kPa
-
Gauge Type: Pressure
-
Connection Location: Bottom
-
Connection Size: 1/4" NPT
-
Lens Type: Polycarbonate
-
Dry or Filled: Glycerin
-
Wetted Parts: Copper
-
Product Series: Severe Service
-
Family Series: Marsh Panel Meters & Gauges, Severe Service Series
-
Description: Gauge, 0-160psi, 63mm, 1/4in.NPT Entry Lower Mount, Severe Service
-
Range: 0-160 psi
-
Case Size: 2.5 "
-
Tube & Socket Material: Copper Alloy
-
Units: Dual Scale: psi, kPa
-
Vacuum Measurement: No
-
Window Composition: Polycarbonate
-
Filler Medium: Glycerine
-
Vent: Rubber Plug
-
Brand: MARSH INSTRUMENTS
-
MPN: J7652P
