Marsh Bellofram J7648P Severe Service Gauge 0-100 PSI 2-1/2

Product Description

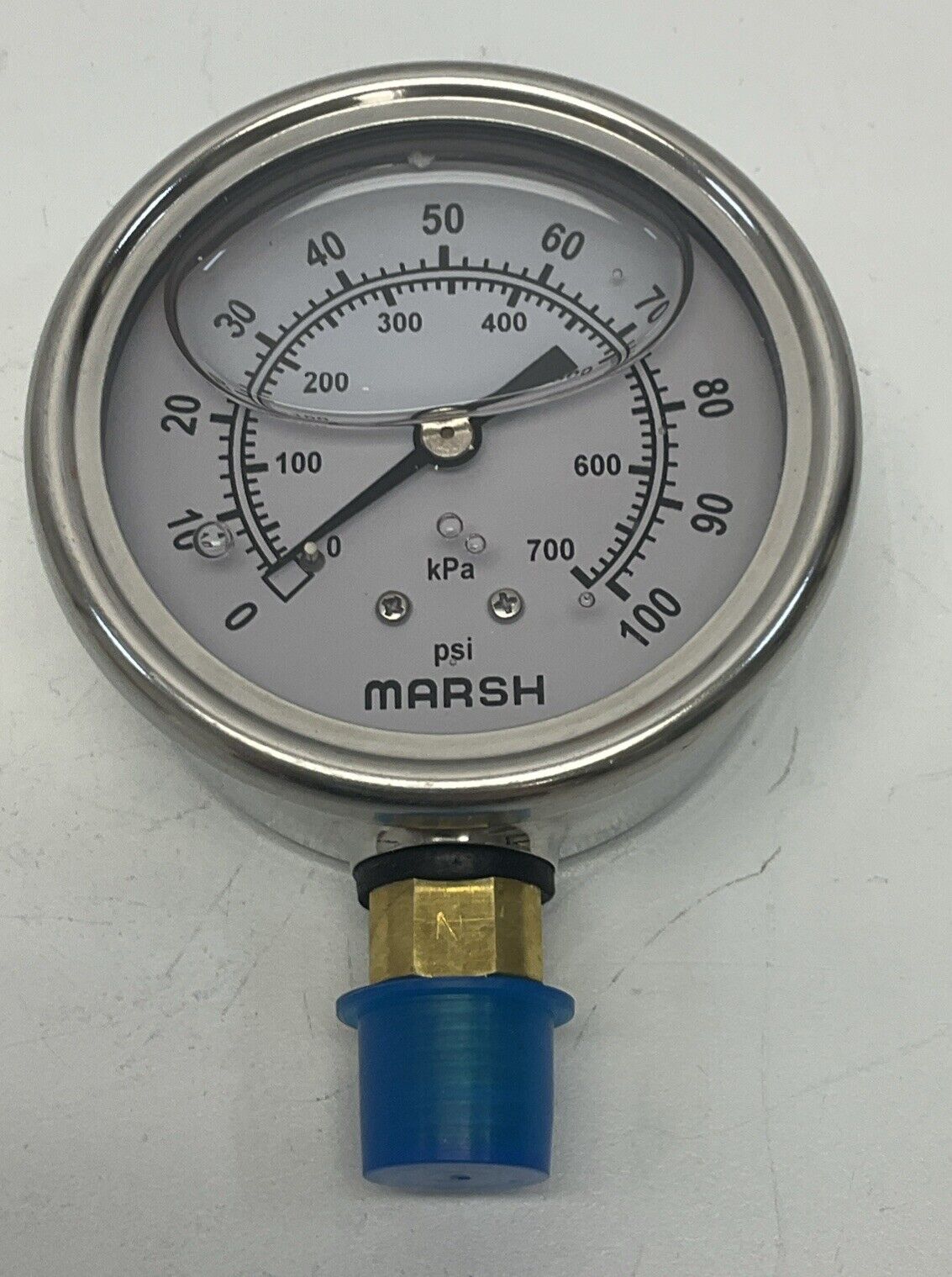

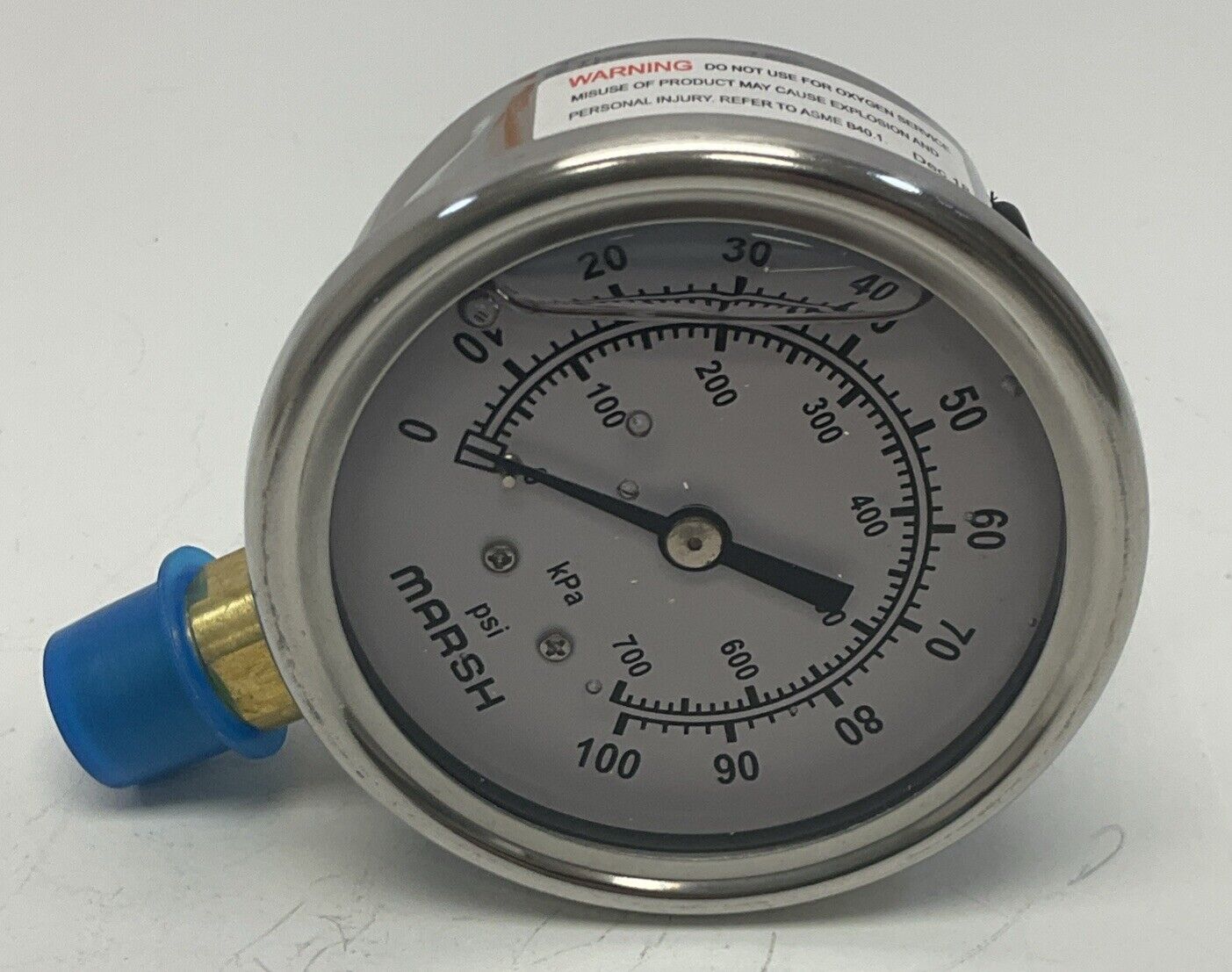

The Marsh Bellofram J7648P severe service liquid filled gauge is designed for rugged environments with pulsation or vibration. This 2-1/2" dial gauge measures pressure from 0 to 100 PSI and is filled with glycerin for cushioning and dampening. It features a 1/4 IN NPT lower connection and a 304 stainless steel case.

• Designed for rugged and harsh environmental conditions
• Suitable for applications with pulsation or vibration
• Liquid filled for cushioning and dampening effect

Product Highlights

This gauge provides reliable pressure measurements in demanding industrial and OEM environments. It reduces pointer flutter and lubricates internals.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: J7648P
• Country of Origin: China

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 0 - 100 PSI
• Units Of Measure: PSI, KPA

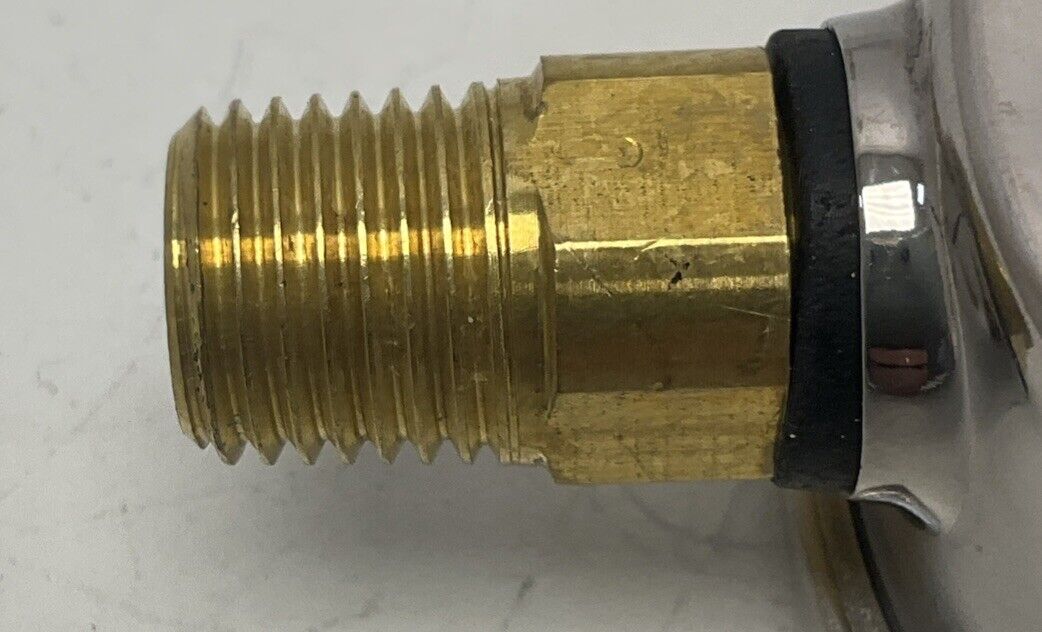

• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Dial Face: Black Markings On White
• Case Material: 304 Stainless Steel
• Lens Material: Polycarbonate
• Pointer Material: Black Aluminum
• Movement Material: Brass
• Tube Material: Copper Alloy
• Socket Material: Copper Alloy
• Filling: Glycerin Filled
• Series: Severe Service Series
• Model: J7648P
• Case Type: Plain
• Primary Range: 0-100 psi
• Secondary Scale: kPa
• Gauge Type: Pressure
• Connection Location: Bottom
• Dry or Filled: Glycerin
• Wetted Parts: Copper Alloy
• Brand: Marsh Bellofram
• Dial Diameter: 63 mm
• Liquid Filled: Glycerin
• Material: 304 Stainless Steel Case
• Mounting Type: Lower
• Pressure Range: 0 to 100 psi
• Length: 2.68 IN
• Width: 2.68 IN
