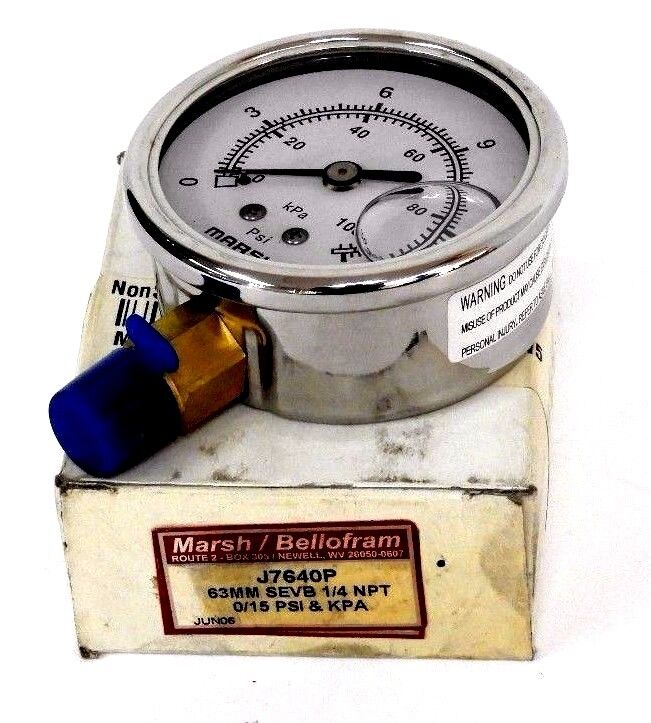

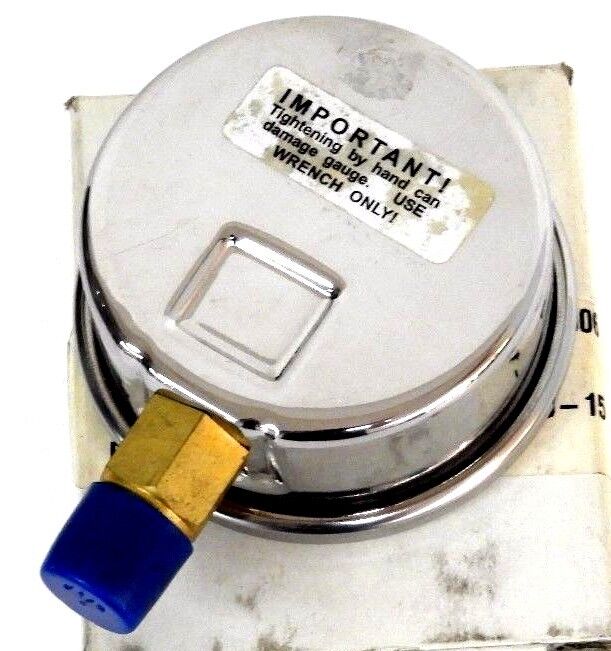

Marsh Bellofram J7640P 0-15 psi Gauge 2-1/2

Product Description

The Marsh Bellofram J7640P severe service liquid filled gauge is designed for rugged and harsh environments, especially where pulsation or vibration is present. Liquid filling provides cushioning and dampening, reducing pointer flutter and lubricating internal components. This gauge features a 2-1/2 IN dial and measures from 0 to 15 PSI, also displaying KPA units.

• Designed to perform in rugged and harsh environmental conditions
• Suitable for applications where pulsation or vibration is present
• Liquid filled for cushioning and dampening effect

Product Highlights

This gauge is ideal for industrial and OEM environments where reliable pressure measurements are needed in demanding conditions.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: J7640P
• Country of Origin: China

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 0-15 PSI
• Units Of Measure: PSI, KPA
• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Dial Face: Black Markings On White
• Case Material: 304 Stainless Steel
• Lens Material: Polycarbonate
• Pointer Material: Black Aluminum
• Movement Material: Brass
• Tube Material: Copper Alloy
• Socket Material: Copper Alloy
• Filling: Glycerin Filled
• Manufacturer: MARSH
• Series: Severe Service Series
• Model: J7640P
• Case Type: Plain
• Primary Range: 0-15 psi
• Secondary Scale: kPa
• Gauge Type: Pressure
• Connection Location: Bottom
• Connection Size: 1/4" NPT
• Dry or Filled: Glycerin
• Wetted Parts: Copper
• Brand: MARSH INSTRUMENTS
