Marsh Bellofram J5452 2-1/2 0-160 PSI 1/4 BM Dry Pressure Gauge

Product Description

The Marsh Bellofram J5452 general service steel case gauge is designed for reliable pressure measurements. Suitable for use with water, oil, air, gas or other noncorrosive media from vacuum/compound through 5000 PSI. It features a 2-1/2 IN dial and measures from 0 - 160 PSI.

• Cost-effective
• General purpose
• Reliable pressure measurements

Product Highlights

This gauge is suitable for use with water, oil, air, gas or other noncorrosive media and provides reliable pressure measurements.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: J5452

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 0 - 160 PSI
• Units Of Measure: PSI, KPA

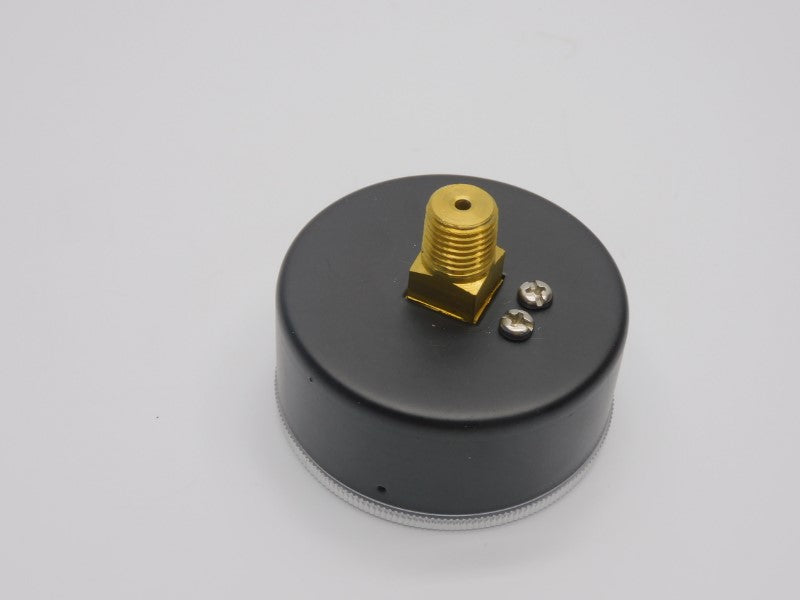

• Connection: 1/4 IN NPT Center Back
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Graduations: 2 Smallest, 20 Largest
• Dial Face: Black Markings On White
• Case Material: Black Steel
• Lens Material: Acrylic Twist-In Clearlok
• Pointer Material: Black Aluminum
• Movement Material: Brass
• Tube Material: Copper Alloy
• Socket Material: Copper Alloy
• Length: 2.73 IN
• Width: 2.73 IN
• Depth: 1.23 IN
• Filled With: Dry
• Part #: J5452
