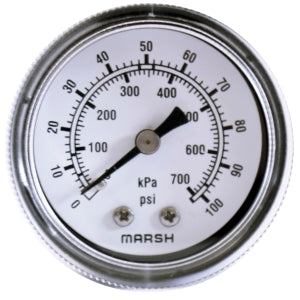

Marsh Bellofram J5448 2-1/2 0-100 PSI 1/4 BM Dry Pressure Gauge

Product Description

The MARSH BELLOFRAM J5448 general service steel case gauge is designed for reliable pressure measurements. Suitable for use with water, oil, air, gas or other noncorrosive media from vacuum/compound through 5000 PSI. It features a 2-1/2 IN dial and measures from 0 to 100 PSI.

• Cost-effective
• General purpose instrument
• Reliable pressure measurements

Product Highlights

This gauge is suitable for use with water, oil, air, gas or other noncorrosive media.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: J5448
• Country of Origin: United States

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 0 - 100 PSI
• Units Of Measure: PSI, KPA
• Connection: 1/4 IN NPT Center Back
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Graduations: 2 Smallest, 10 Largest
• Dial Face: Black Markings On White
• Case: Black Steel
• Lens: Acrylic Twist-In Clearlok
• Pointer Material: Black Aluminum
• Movement: Brass
• Tube Material: Copper Alloy
• Socket: Copper Alloy
• Filled With: Dry
• Case Material: Black Steel
• Lens Material: Acrylic Twist-In Clearlok
• Movement Material: Brass
• Socket Material: Copper Alloy
• Length: 2.73 IN
• Width: 2.73 IN
• Depth: 1.23 IN
