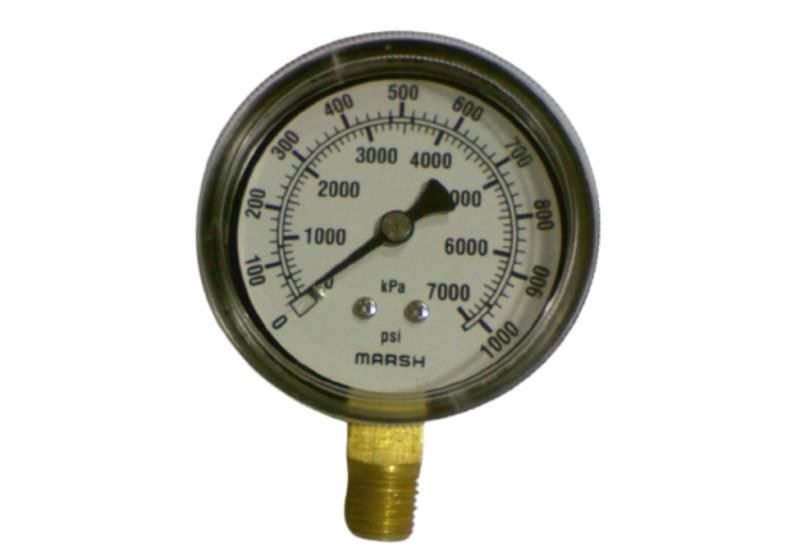

Marsh Bellofram J4672 Pressure Gauge 0-1000 PSI 2-1/2 1/4 Lm

Product Description

The MARSH BELLOFRAM J4672 general service steel case gauge is designed for reliable pressure measurements. Suitable for use with water, oil, air, gas or other noncorrosive media from vacuum/compound through 5000 PSI. It has a 2-1/2 IN dial and measures pressure ranging from 0 to 1000 PSI.

• Cost-effective
• General purpose
• Reliable pressure measurements

Product Highlights

This gauge is suitable for use with water, oil, air, gas or other noncorrosive media.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: J4672

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 0 - 1000 PSI
• Units Of Measure: PSI, KPA
• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 3-2-3% (ASME Grade B)
• Dial Face: Black Markings On White
• Case: Black Steel
• Lens: Acrylic Twist-In Clearlok
• Pointer Material: Black Aluminum
• Movement: Brass
• Tube Material: Copper Alloy
• Socket Material: Copper Alloy
• Filled With: Dry
