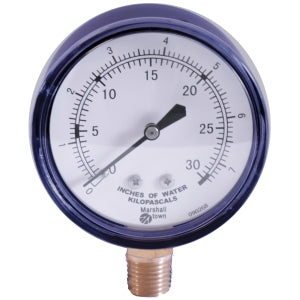

Marsh Bellofram G22707 2-1/2 0-32/0-55 WC Diaphragm Gauge 1/4 Lm

Product Description

The MARSH BELLOFRAM G22707 low pressure gauge incorporates a diaphragm element, allowing for accurate low-pressure readings. It supports a variety of applications, with ASME grade A 2/1/2% accuracy for ranges above 30 IN of water. It has a 2-1/2 IN dial and a 1/4 IN NPT lower connection.

• Low pressure diaphragm gauge
• ASME grade A 2/1/2% accuracy for ranges above 30 IN of water
• Diaphragm internals for accurate low pressure measurement

Product Highlights

This gauge is designed for accurate low-pressure readings, featuring a durable construction and precise measurement capabilities.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: G22707

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 0-32 OZ/SQ-IN - 0-55 IN H2O
• Units Of Measure: OZ/SQ-IN, IN H2O, KPA
• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 2.5% (ASME Grade A)
• Dial Face: Black Markings On White
• Case: Black Steel
• Lens: Acrylic Twist-In Clearlok
• Pointer Material: Black Aluminum
• Movement: Brass
• Socket: Brass
