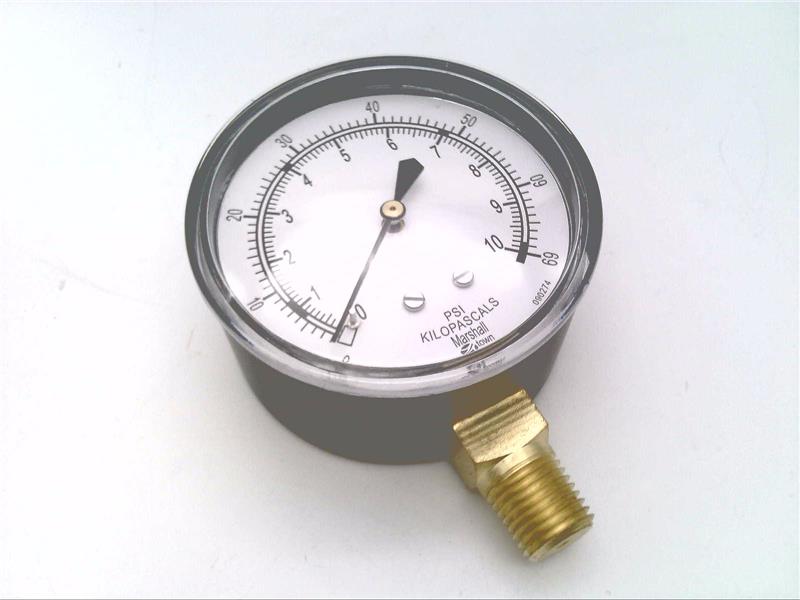

Marsh Bellofram G22699 2-1/2 0-10 PSI Pressure Gauge 1/4 Lm

Product Description

The MARSH BELLOFRAM G22699 low pressure gauge incorporates a diaphragm element, allowing for accurate low-pressure readings in various applications. It features a 2-1/2 IN dial, a measuring range of 0 - 10 PSI, and a 1/4 IN NPT lower connection. This gauge provides dependable performance and accuracy.

• Low Pressure Diaphragm Gauge
• ASME grade A 2/1/2% accuracy for ranges above 30 IN of water
• Diaphragm internals for accurate low pressure measurement

Product Highlights

Provides accurate low-pressure readings with a diaphragm element and ASME grade A accuracy.

Product Information

Standard Information

• Brand: MARSH BELLOFRAM
• Manufacturer Part Number: G22699

Technical Specifications

• Dial Size: 2-1/2 IN
• Measuring Range: 0 - 10 PSI
• Units Of Measure: PSI, KPA
• Connection: 1/4 IN NPT Lower
• Accuracy: Plus/Minus 2-1-2% (ASME Grade A)
• Dial Face: Black Markings On White
• Case: Black Steel
• Lens: Acrylic Twist-In Clearlok
• Pointer Material: Black Aluminum
• Movement: Brass
• Socket: Brass
• Part #: G22699
• Case Material: Black Steel
• Lens Material: Acrylic Twist-In Clearlok
• Movement Material: Brass
• Socket Material: Brass
• Smallest Graduations: 0.10 psi
• Wetted materials: phosphor bronze diaphragm, brass socket
• Process connection: 1/4" NPT(M), lower mount
• Pointer: aluminum
