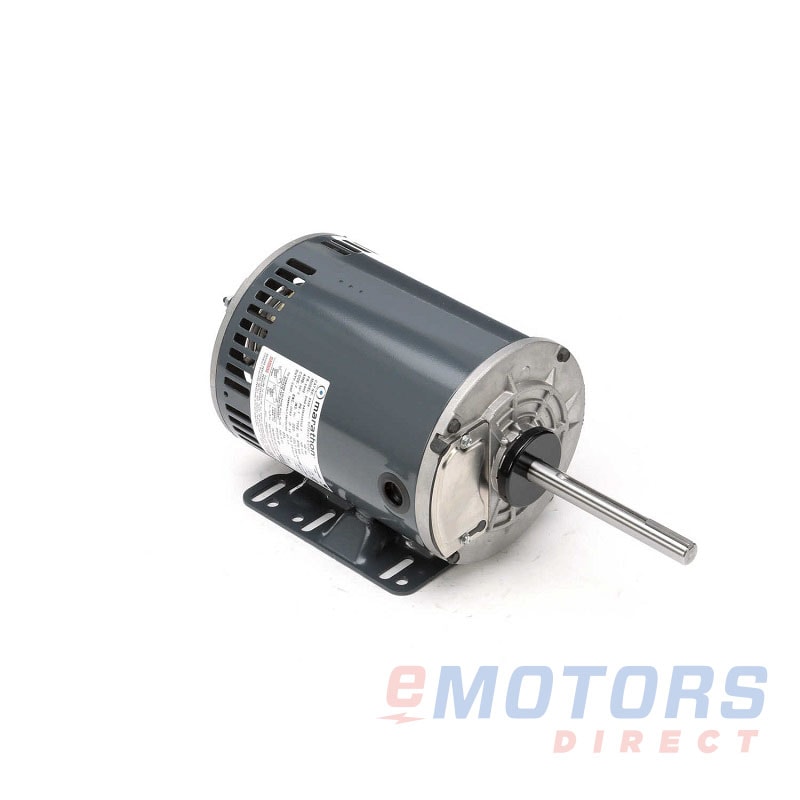

MARS X531 Refrigeration Fan Motor

Product Description

The MARS X531 Refrigeration Fan Motor is a three-phase motor designed specifically for refrigeration equipment. The motor operates at eight hundred fifty revolutions per minute (RPM) and is ideal for applications that require a horizontal rigid base mount. It features an enclosed shaft end bracket and a vented frame, making it suitable for continuous duty. The automatic reset thermal protector ensures safety during operation.

• Replacement motor for refrigeration equipment.
• Reversible rotation with a single speed operation.
• Includes automatic reset thermal protection.

Product Highlights

The MARS X531 is engineered to replace failing motors in refrigeration applications. It is built to operate reliably in various environmental conditions.

Product Information

Standard Information

• Brand: MARS
• Manufacturer: Mars

Technical Specifications

• Motor Type: Motor
• Motor Output Power: 1.5 HP
• Rated Speed: 850 RPM
• Input Voltage: 208-230/460 VAC
• Rated Current: 3.5-7 AMP
• Phase: Three
• Frequency: 60 Hz
• Weight: 47 lb
• Dimensions: 20.3 x 11.2 x 9.3 inches
• Protection Class: IP10
• Insulation Class: H
• Agency Approvals: CSA
