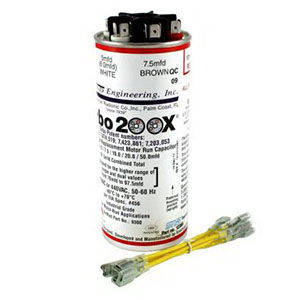

Mars TURBO200X Mars 12300 Motor Run Capacitor 2.5 - 97.5 uF 440 V

Product Description

Mars TURBO200X is a universal motor run capacitor designed for HVAC applications. This capacitor features a capacitance range of two point five to ninety-seven point five microfarads and a voltage rating of four hundred forty volts. It operates at frequencies of fifty to sixty hertz. The round aluminum case measures five point seven inches in height and has a diameter of two point five inches.

• Compatible with capacitor hard start kits
• Replaces over two hundred popular capacitor values from seventy point zero five to ninety-seven point five microfarads
• Designed for use in blower motors and condensers

Product Highlights

The Mars TURBO200X capacitor is suitable for both single and dual capacitor ratings for condenser and blower motors.

Product Information

Standard Information

• Manufacturer: Mars
• Series: Turbo 200 X

Technical Specifications

• Capacitance: 2.5 - 97.5 uF
• Voltage Rating: 440 V
• Frequency Rating: 50/60 Hz
• Dimensions: 2.5 Inch Dia x 6.3 Inch H
• Case Height: 5.7 Inch
• Case Material: Aluminum
• Cover Material: Terne Plate Steel
• Operating Temperature: -40 to 70 deg C
