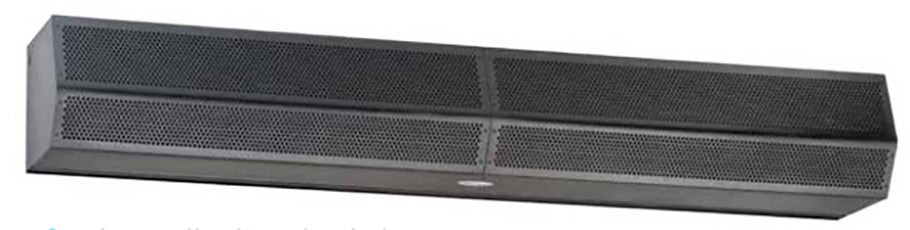

Mars STD296-2UH-OB Standard Series (STD2) Unheated Air Curtain - 96 inches - 460/3/60

Product Description

The Mars Air Systems STD296-2UH-OB is a 96-inch unheated air curtain designed for commercial use. This air door operates at 460 volts and features a powerful half-horsepower motor, suitable for creating an environmental barrier in spaces up to 12 feet wide. It effectively keeps out insects from areas up to 10 feet.

• Ideal for various installations like customer entrances, cold storage rooms, and shipping doors.
• Constructed with durable metal and finished in a powder-coated obsidian black for a clean look.
• Combination of effective airflow and motor control options enhances efficiency.

Product Highlights

With a low-profile design, the STD2 series integrates seamlessly into any environment. It is recommended for installation heights between eight and twelve feet.

Product Information

Standard Information

• Brand: Mars
• Power Supply: 460 volts, 3-phase

Technical Specifications

• Overall Length: 96 inches
• Full Load Amps: 1.6 amps
• Sound Level: 68 dBA
• Air Volume: 2884 CFM
• Uniformity: 85%
• Power Rating: 1100 watts
• Weight: 135 lbs
• Motor Count: 2
