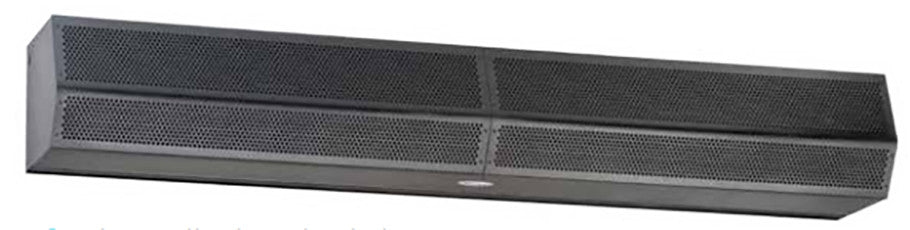

Mars STD2842EFNOB Heated Air Curtain 84 Inch 230 Volt 3-Phase Obsidian Black

Product Description

The Mars Air Systems STD284-2EFN-OB is a heated air curtain designed for effective temperature control and insect protection in commercial spaces. This 84-inch unit operates on 230 volts and is suitable for three-phase electrical systems. The air curtain features two 1/2 horsepower motors, providing powerful airflow to create a barrier against the outside environment.

• Height: 10 5/8 inches
• Recommended installation height: 8 to 12 feet
• Works with door limit switches for automatic operation

Product Highlights

The STD284-2EFN-OB is part of the Standard Series (STD2) and is ideal for locations like shipping doors, customer entrances, and cold storage rooms. It integrates seamlessly into various commercial settings. The air curtain is constructed of durable materials finished in a powder-coated obsidian black.

Product Information

Standard Information

• Voltage: 230 Volt
• Phase: 3-Phase

Technical Specifications

• Overall Length: 84 inches
• Motors: 2 x 1/2 HP
• Power Rating: 1020 Watts
• Full Load Amps: 66 Amps
• Air Volume: 2836 CFM
• Uniformity: 87%
• Weight: 190 lbs
