MARS STD2842EENOB Mars Air Systems STD284-2EEN-OB Standard Series Heated Air Curtain 208 Volt 84 inch

Product Description

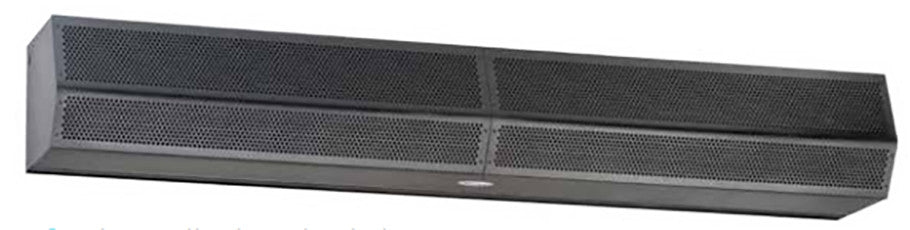

The MARS STD284-2EEN-OB is a heated air curtain designed to enhance environmental control in various spaces. This 84-inch air curtain operates at 208 volts and 3-phase power, featuring two 1/2 horsepower motors for effective performance. Suitable for installation heights from eight to twelve feet, it works well in applications such as customer entrances, shipping/receiving doors, and cold storage rooms.

• Durable metal construction with powder-coated obsidian black finish
• Internal mounted control panel with remote thermostat
• Available in lengths from 36 inches to 96 inches

Product Highlights

This air curtain provides a cost-efficient barrier that helps maintain temperature while preventing insect intrusion.

Product Information

Standard Information

• Power: 208 Volts, 3-Phase
• Overall Length: 84 inches

Technical Specifications

• Motors: 2 Motors; 1/2 HP each
• Full Load Amps: 72 amps
• Volume: 2836 CFM
• Uniformity: 87%
• Power Rating: 1020 Watts
• Weight: 190 lbs
