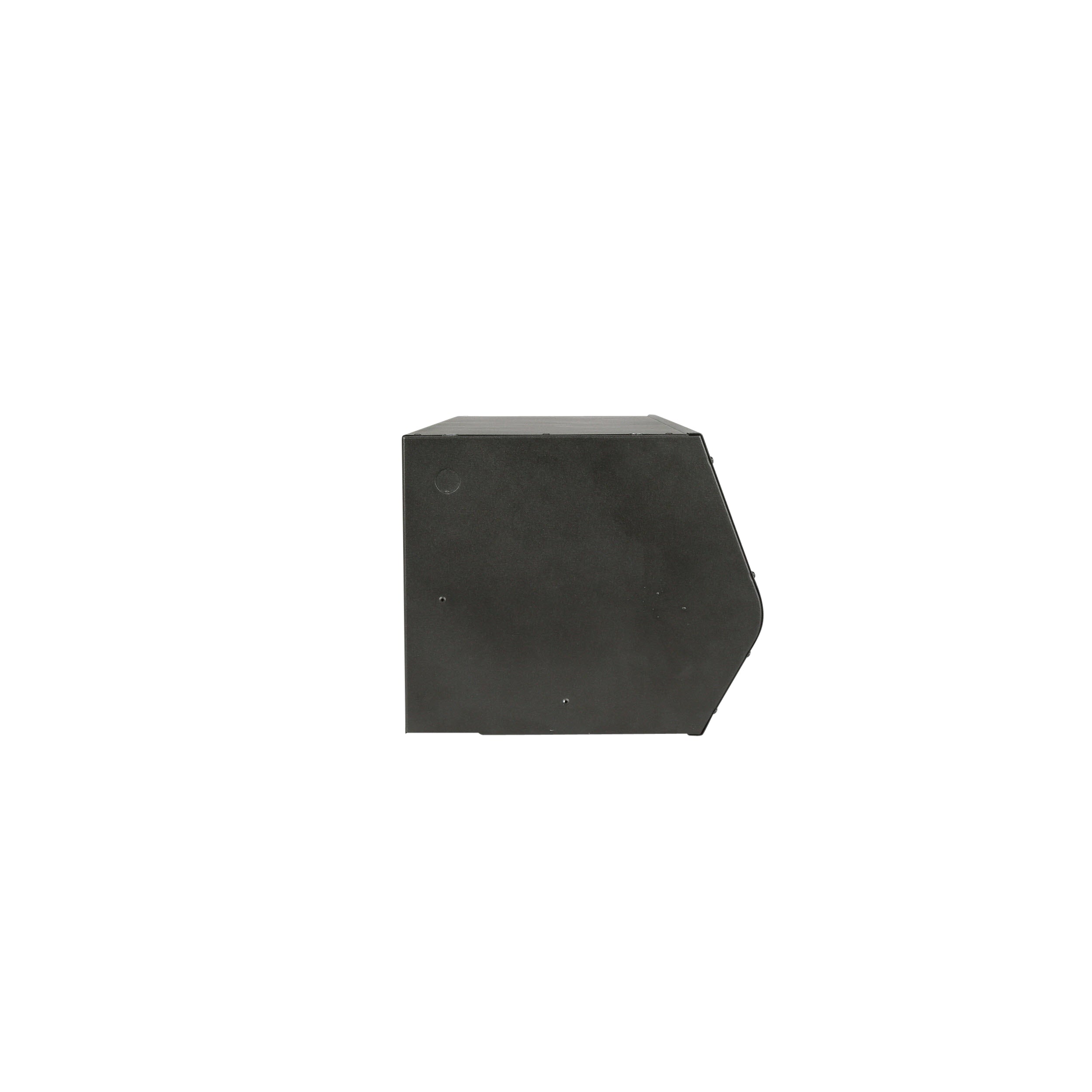

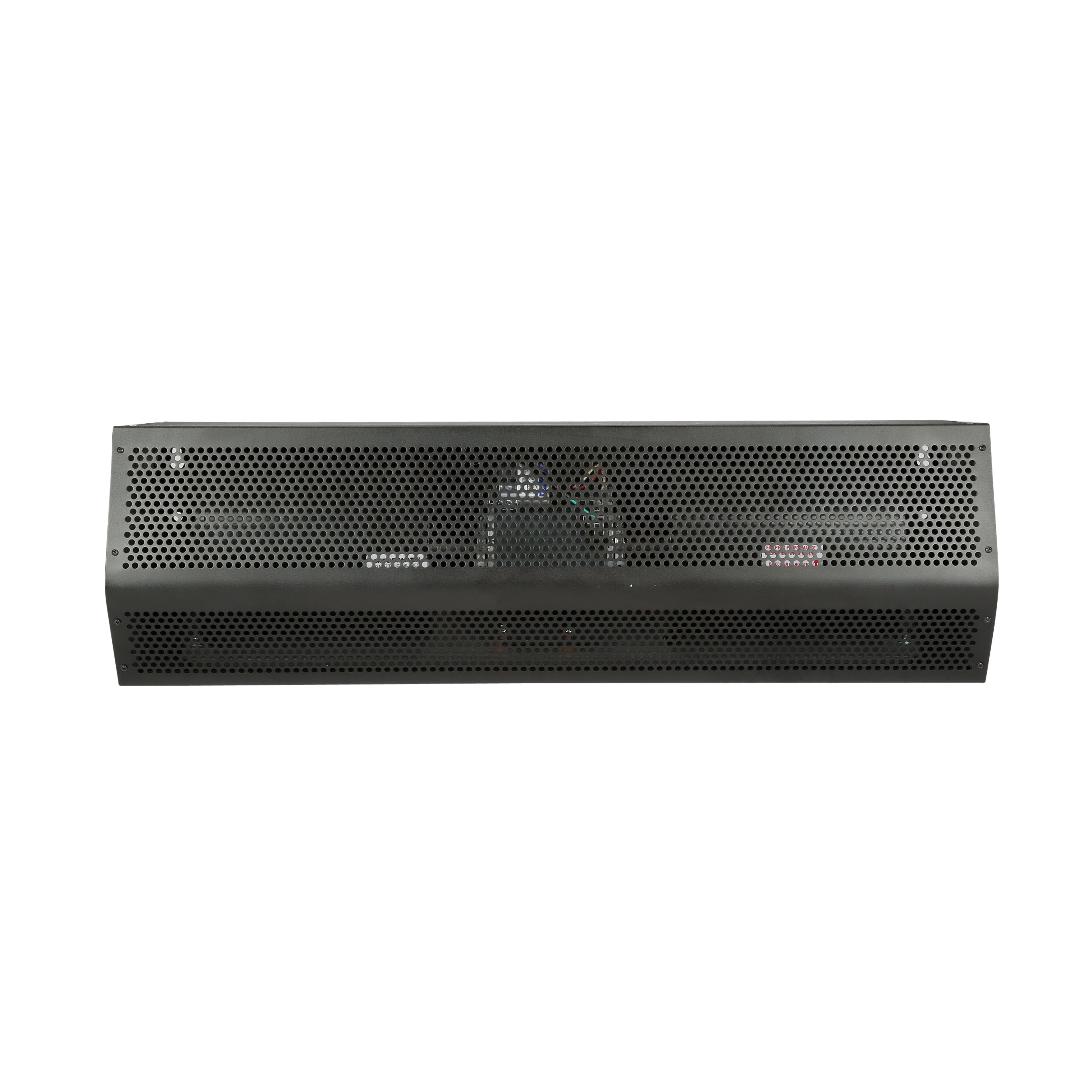

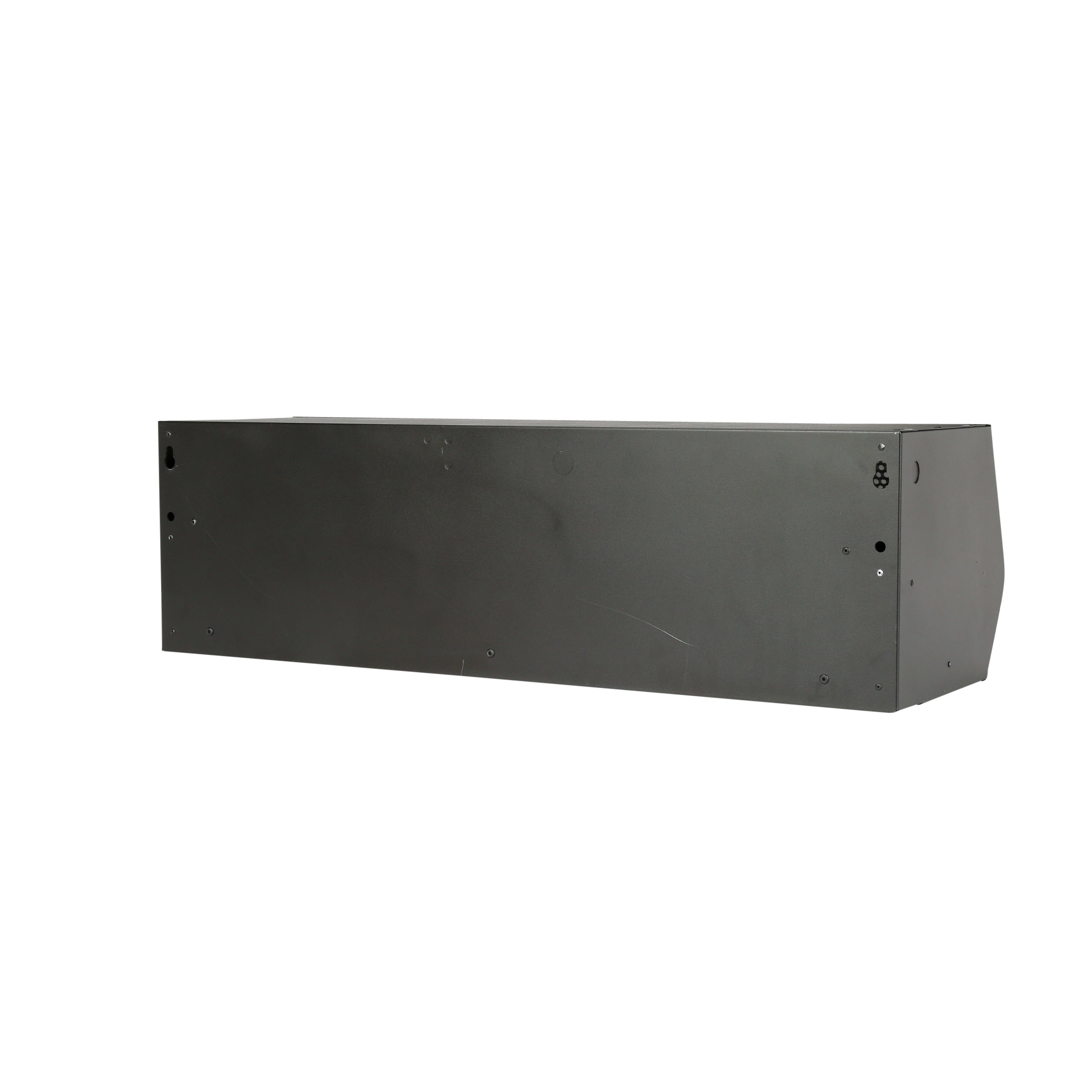

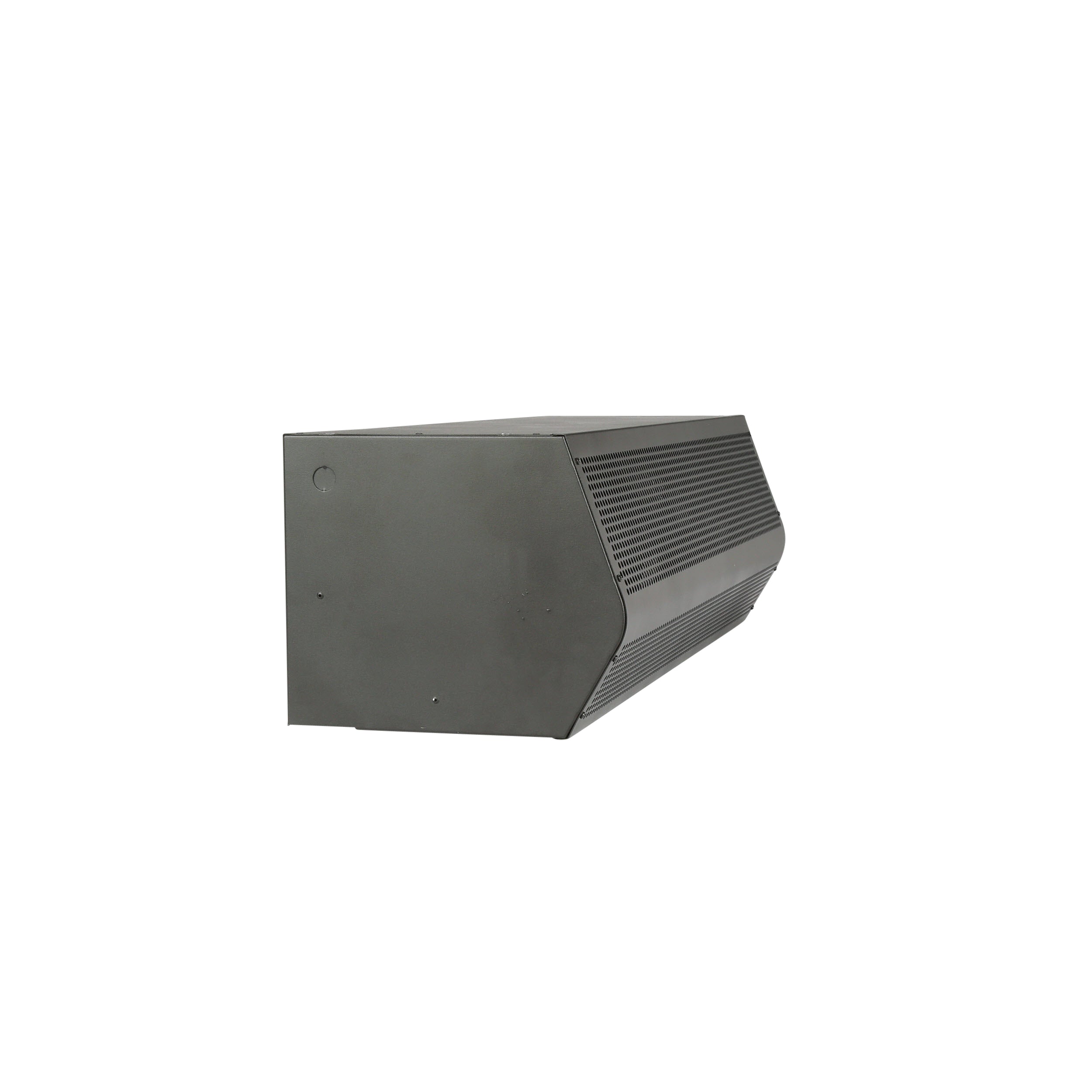

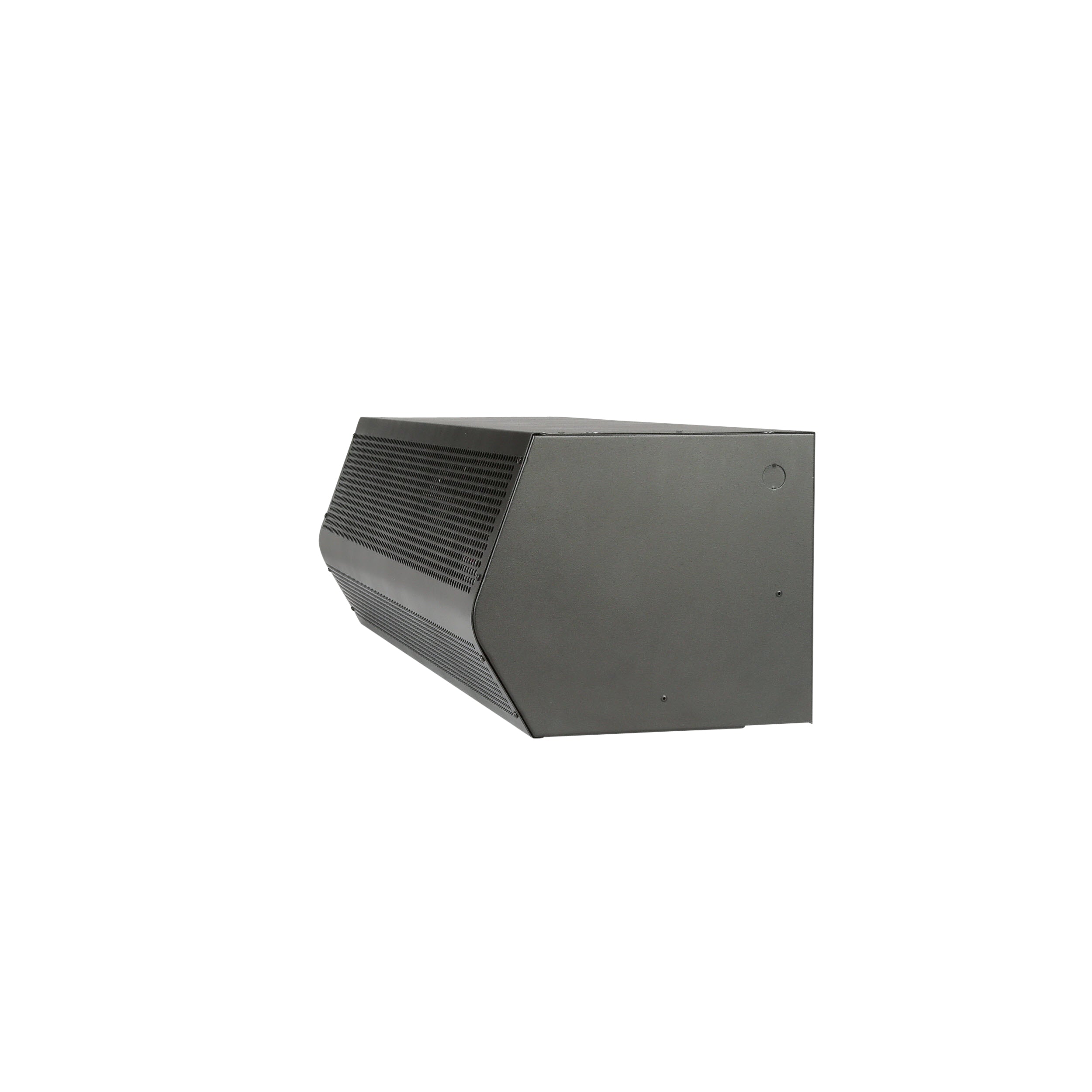

Mars STD284-2UH-OB Standard 2 Air Curtains 1/2 HP 84 inch

Product Description

The MARS STD284-2UH-OB Standard 2 series air curtain is a popular energy-saving commercial and industrial hybrid. Featuring a 1/2 horsepower motor, it is suitable for heights up to 10 ft for insect control and 12ft for environmental control. It has an 84 inch width and delivers 2836 CFM. The standard color is Obsidian Black and heated options are available.

• Commercial and industrial hybrid design
• Energy-saving operation
• Suitable for heights up to 10 ft for insect control and 12ft for environmental control

Product Highlights

The MARS STD284-2UH-OB air curtain creates a wall of air to maintain different environments. It is ideal for restaurants, retail, healthcare, manufacturing, and transportation applications.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD284-2UH-OB
• Country of Origin: USA

Technical Specifications

• MPN: STD284-2UH-OB
• Series: STD2 (Standard 2) Series
• Heating Mode: Unheated
• Nozzle Width (inches): 84
• Unit Width (inches): 84
• Unit Height (inches): 10.625
• Wind Stopping Capability (MPH): 12
• Horsepower: 1/2
• Motors: 2
• Air Flow Certified (AMCA): Yes
• Voltage Rating: 460/3/60
• Voltage Code: H
• Air Curtain Air Volume (CFM): 2836
• Amps: 1.6
• dBA: 68
• Phase: 3-Ph
• Hertz: 60Hz
• Heating: Unheated
• Profile Type: Standard Profile
• Housing Color: Black
• Housing Material: Steel
• Finish: Galvanized; Powder Coated
• Grille Material: Galvanized Steel
• For Opening Width: 7 ft
• Max. Mounting Height - Environmental: 12 ft
• Max. Mounting Height - Insects: 10 ft
• Nameplate Voltage: 460V AC
• Overall Height: 10-5/8 in
• Overall Width: 84 in
• Overall Depth: 12-3/4 in
• Nozzle Width: 2-1/2 in
• Max. Air Volume: 2,836 cfm
• Max. Air Velocity: 1,945 fpm
• Sound Level @ 10 ft: 68 dBA
• Number of Speeds: 1
• Number of Motors: 2
• Motor Horsepower per Motor: 1/2 hp
• Standards: CSA; ETL Listed; UL Indoor; UL Outdoor
• Manufacturer: Mars Air Systems
• Country of Origin: US
• California Prop 65 Warning: N
• Weight: 152.0000
