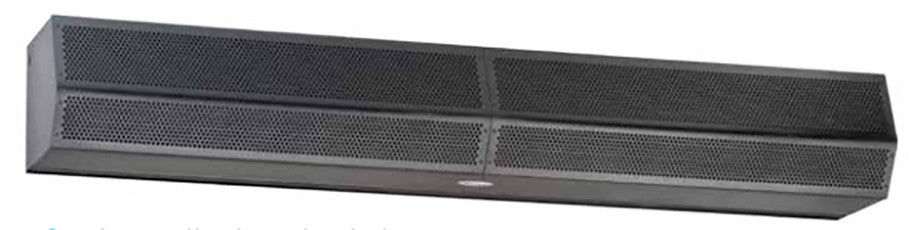

Mars STD284-2UD-OB Standard Series Unheated Air Curtain 208/230 Volt 84 inch

Product Description

The Mars Air Systems STD284-2UD-OB is an unheated air curtain designed for efficient environmental control. Operating on 208/230 volts with a single phase, this model has a length of eighty-four inches. The STD284-2UD-OB features two motors with a half horsepower each, making it ideal for various applications such as shipping and receiving doors, customer entrances, and cold storage.

• High-performance motor with 1/2 HP for robust airflow.
• Suitable for installation heights between eight and twelve feet.
• Low profile design enhances aesthetic in any setting.

Product Highlights

This model is crafted with durable metal and finished in powder-coated obsidian black to suit any environment. The STD284-2UD-OB provides a barrier against insects and drafts, ensuring a comfortable space for building occupants.

Product Information

Standard Information

• Brand: Mars
• MPN: STD284-2UD-OB

Technical Specifications

• Overall Length: 84 inches
• Motors: 2 Motors; 1/2 HP each
• Full Load Amps: 5.0 amps
• Sound Level: 68 dBA
• Air Volume: 2836 CFM
• Uniformity: 87%
• Power Rating: 1020 watts
• Weight: 125 lbs
