Product Description

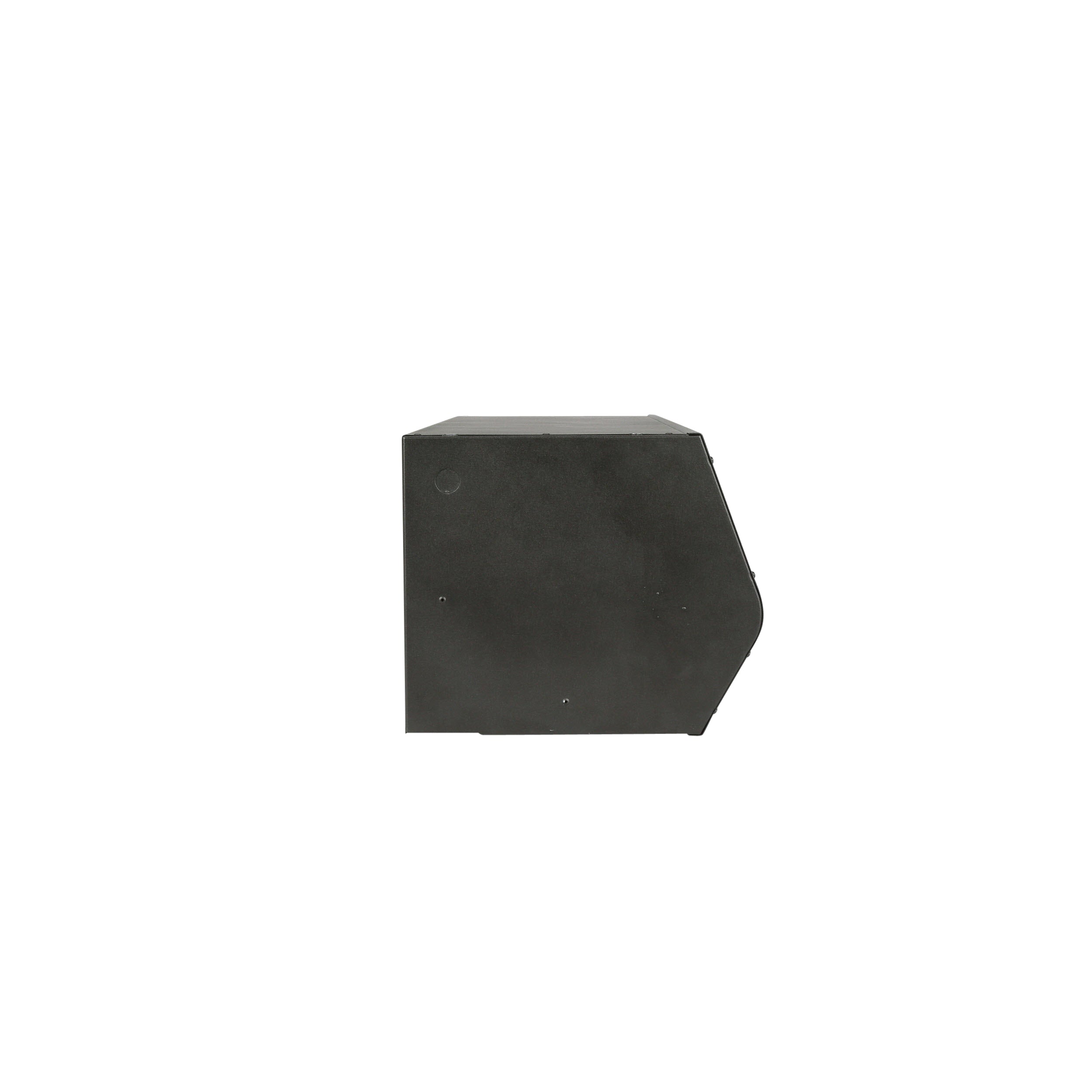

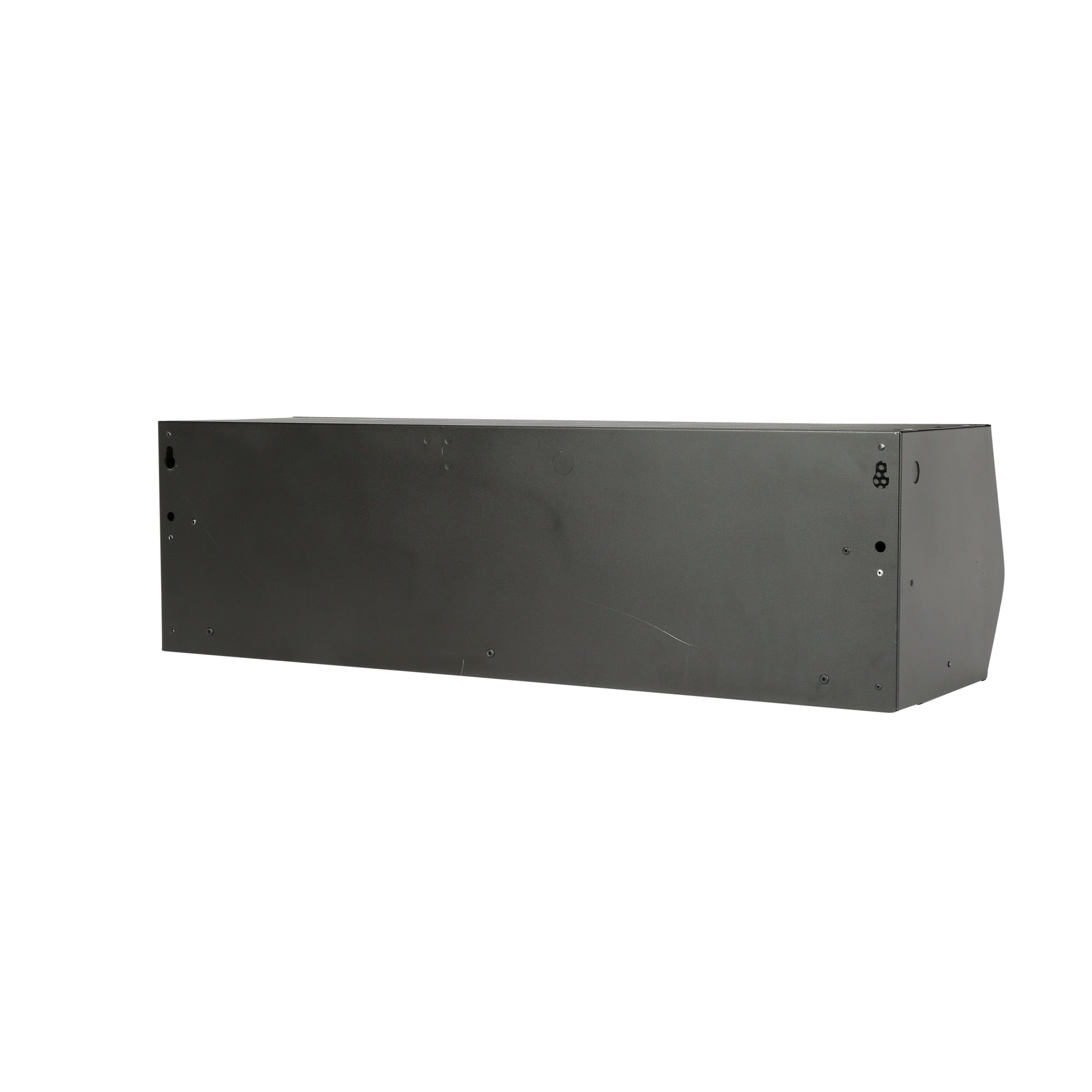

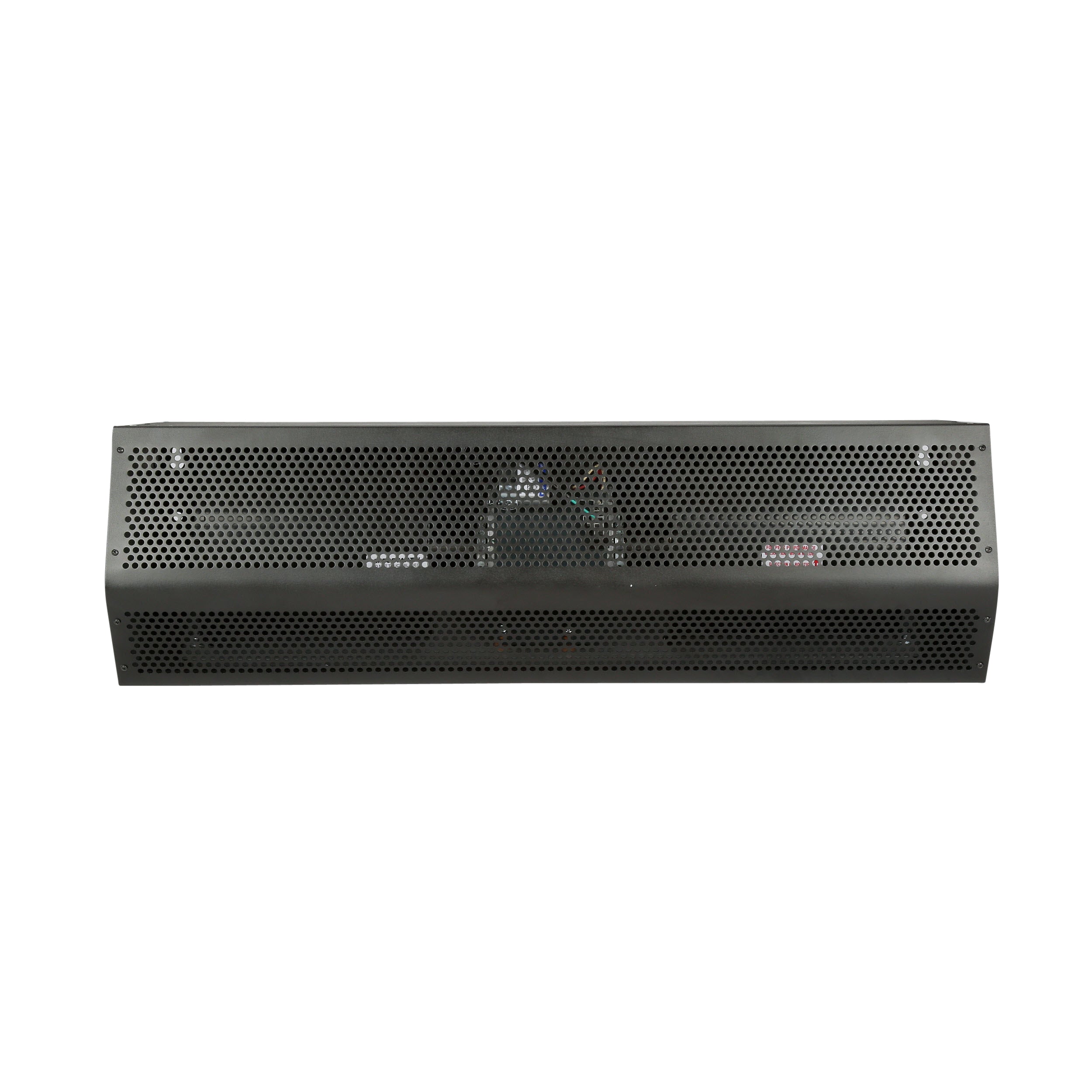

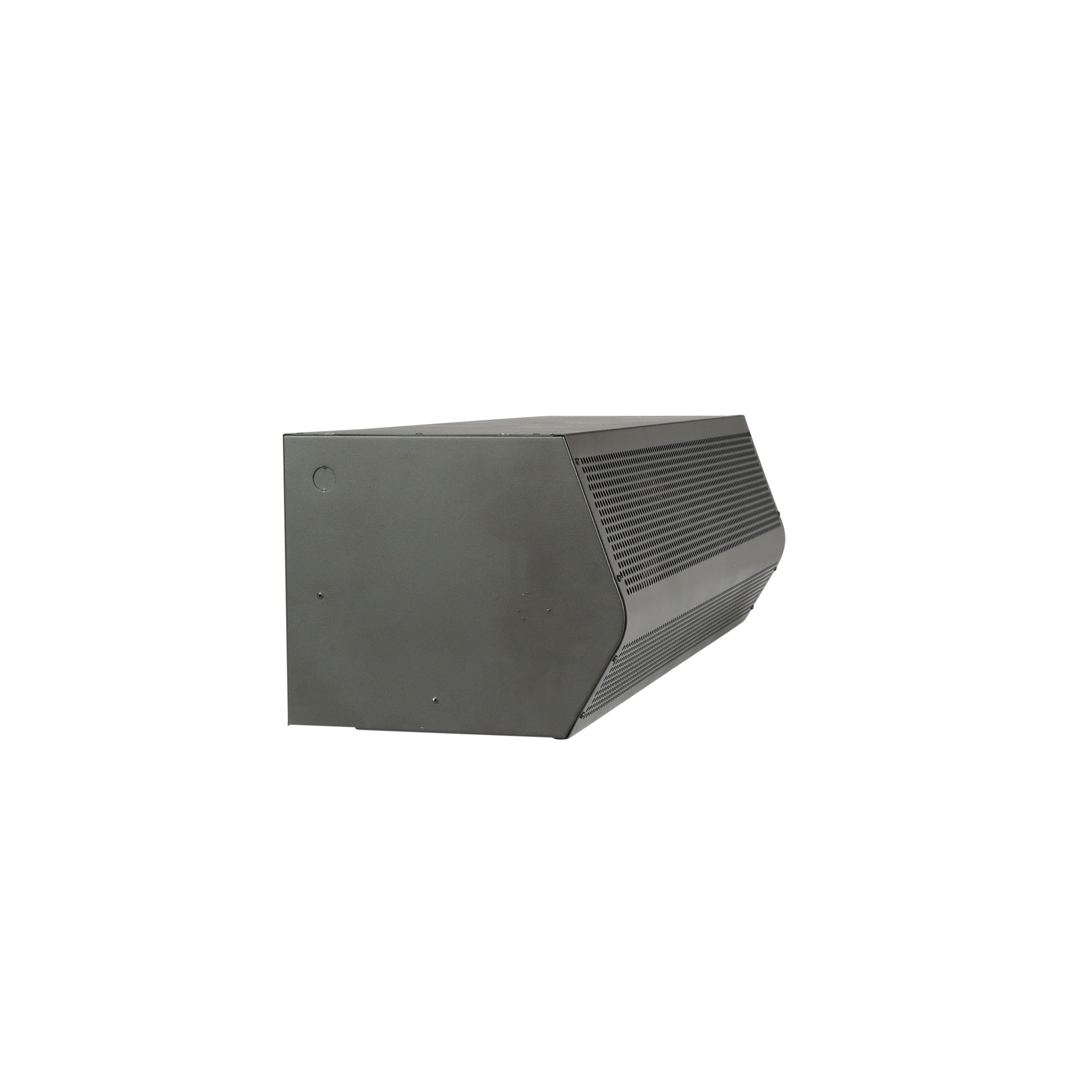

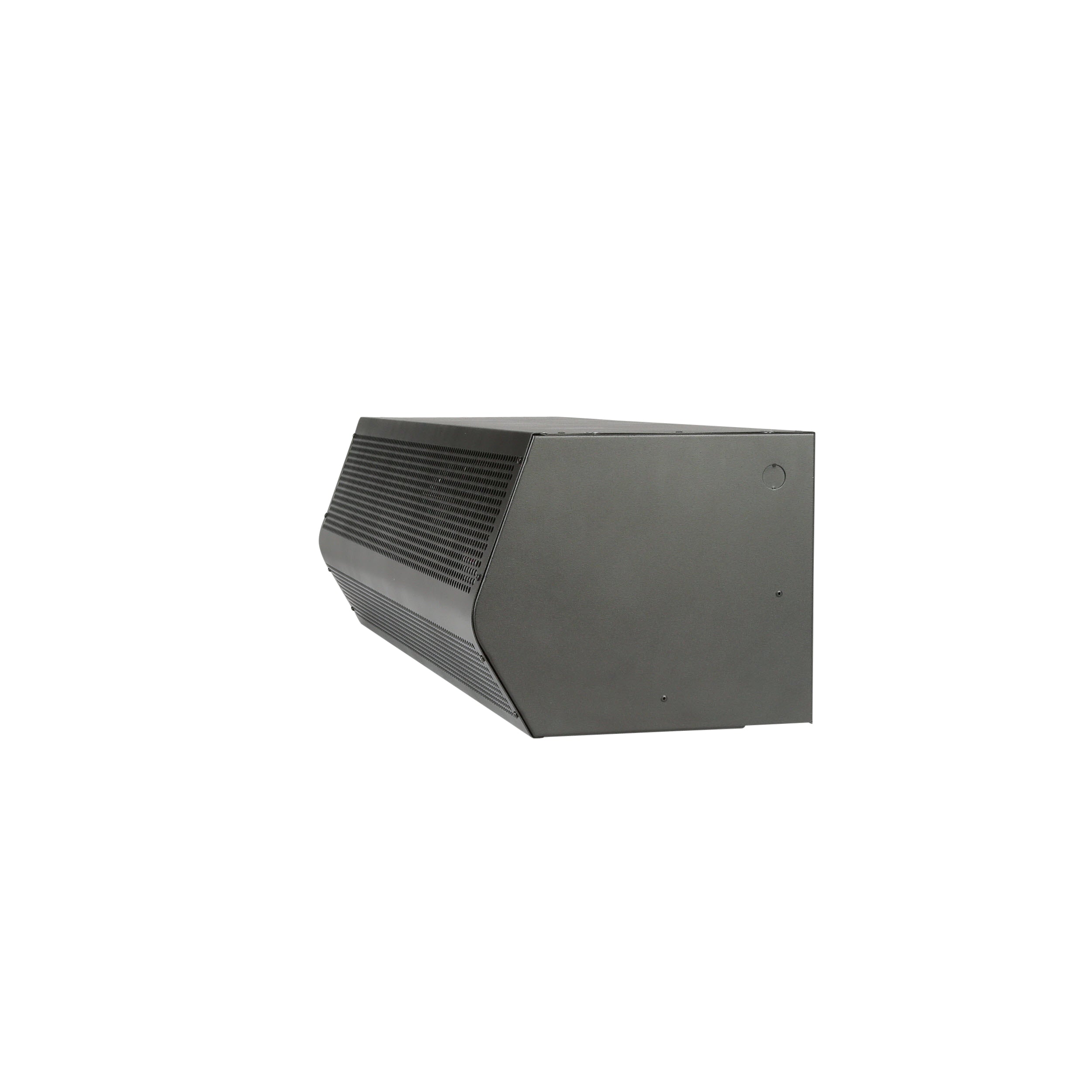

The MARS STD284-2UA-OB air curtain is designed for multipurpose use with a 7 ft. frame opening width. This unheated steel air curtain measures 10 5/8 inches in height, 84 inches in width, and 13 inches in depth. It is suitable for temperature control up to 12 ft and insect control up to 10 ft.
- Maximum air velocity of 4,865 fpm
- Maximum air volume of 2,836 cfm
- Sound level of 68 dBA at 10 ft
Product Highlights
Ideal for maintaining interior temperature and minimizing dirt, dust, and fumes in commercial and industrial applications.
Product Information
Standard Information
-
Brand: MARS
-
Manufacturer Part Number: STD284-2UA-OB
-
Country of Origin: United States
Technical Specifications
-
Hz: 60
-
Item: Air Curtain
-
Depth: 12 3/4 in
-
Phase: 1
-
Width: 84 in
-
Finish: Galvanized, Powder Coated
-
Height: 10 5/8 in
-
Series: STD2 (Standard 2)
-
Voltage: 115
-
Max. RPM: 1,750 RPM
-
Motor HP: 1/2 hp
-
Washdown: No
-
Frequency: 60 Hz
-
Max. Amps: 10.2
-
Standards: ETL
-
Drive Type: Direct Drive
-
Motor Type: Permanent Split Capacitor
-
Nozzle Width: 84 in
-
Profile Type: Standard Profile
-
Housing Color: Black
-
Maximum Speed: 1,750 RPM
-
Grille Material: Steel
-
Motor Enclosure: Totally Enclosed Air Over
-
Nominal Voltage: 120V AC
-
Air Curtain Item: Air Curtain
-
Air Curtain Type: Ambient Air
-
Number of Motors: 2
-
Number of Speeds: 3
-
Full Load Current: 10.2 A
-
Heated/Not Heated: Not Heated
-
Nameplate Voltage: 115V AC
-
Power Consumption: 1,020 W
-
Air Curtain Finish: Galvanized
-
Air Curtain Heated: No
-
Maximum Air Volume: 2,836 cfm
-
Overall Dimensions: 10 5/8 in H x 84 in W x 13 in D
-
Sound Level @ 10 ft: 68 dBA
-
Max. Mounting Height: 10 ft
-
Maximum Air Velocity: 4,865 fpm
-
Sanitation Certified: No
-
For Frame Opening Width: 7 ft
-
Nameplate Voltage/Phase: 115V AC - 1 Ph
-
Nominal Voltage - Phase: 120V AC - 1 Phase
-
Air Curtain Air Velocity: 2925 fpm
-
Heater Power Consumption: Not Applicable
-
Ultraviolet Air Cleaning: No
-
Air Curtain dBA @ 10 Feet: 68
-
Motor Horsepower per Motor: 1/2 hp
-
Air Curtain Max. Door Width: 7 ft
-
Air Curtain Housing Material: Steel
-
Mounting Height for Insect Control: 10 ft
-
Country of Origin (subject to change): United States
-
Max. Mounting Height Environment/Insect: 12 ft / 10 ft
-
Mounting Height for Temperature Control: 12 ft
-
Environmental - Max Height (feet): 12
-
Insect - Max Height (feet): 10
-
Heating Mode: Unheated
-
Nozzle Width (inches): 84
-
Unit Width (inches): 84
-
Unit Height (inches): 10.625
-
Wind Stopping Capability (MPH): 12
-
Horsepower: 1/2
-
Motors: 2
-
Uniformity (%): 87
-
dBA: 68
-
Door Width (Inches): 84
-
Door Height: 8' - 10'
-
Number of Poles: 1
-
Max Volume: 5100
-
Max Velocity: 2925
-
# of Motors: 2
-
Product: Air Curtains
-
Product Type: Facility Maintenance
-
Temperature: Unheated
-
Type: Unheated
-
Length (in): 84
-
Dimensions Width: 84 Inches
-
Dimensions Depth: 12.75 Inches
-
Dimensions Height: 10.62 Inches
-
Air Volume (CFM): 2836
-
Application: Walk-In Coolers
-
ETL Listed: Yes
-
Exterior Color: Black
-
HP: 1/2 HP
-
Max Environmental Separation Height: 12 Feet
-
Max Insect Blocking Height: 10 Feet
-
Power: Electric
-
Wattage: 1,020 Watts
-
Hertz: 60Hz
-
Heating: Unheated
-
Volts: 115 Volts
-
Voltage Rating: 115/1/60
-
Voltage Code: A
-
Air Curtain Air Volume (CFM): 2836
-
Amps: 10.2
-
FLA (Ampacity): 10.2Amps
-
Sound dBA: 68
-
Depth (in.): 12.75
-
Height (in.): 10.625
-
Requires: Door Limit Switch, Motor Control Panel
