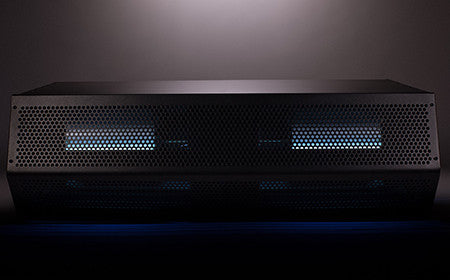

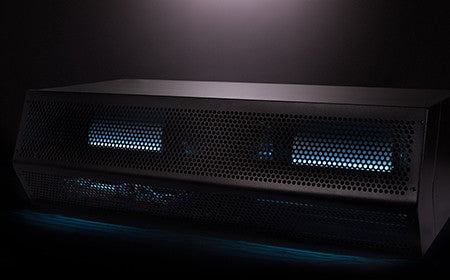

Mars STD272-2UD-OB-UVP Standard 2 Clean Air Series Unheated Air Curtain with UV Protection

Product Description

The Mars Air Systems STD272-2UD-OB-UVP is a 72 inch unheated air curtain offering UV protection. It utilizes a patented dual bulb design to effectively remove bacteria with up to 99.99% efficiency. This air curtain is suitable for various applications, providing a clean airstream while reducing odors and allergens.

• UVC germicidal technology destroys up to 99.99% of airborne contaminants.
• Ideal for food storage, processing areas, hospitals, and cleanrooms.
• Dual motor design provides efficient air movement.

Product Highlights

This air curtain is excellent for maintaining clean air in sensitive environments. It offers insect protection and minimizes heat loss in doorways up to 12 feet high.

Product Information

Standard Information

• Type: Unheated, UVC
• Voltage: 208/230

Technical Specifications

• Length: 72 inches
• Depth: 21.375 inches
• Height: 10.625 inches
• Weight: 180 lbs
• Max. Door/Window Height: 12 ft
• Max. Height Insect Block: 10 ft
• Horsepower (per motor): 1/2
• CFMs: 2758
• Certifications: ETL Listed
