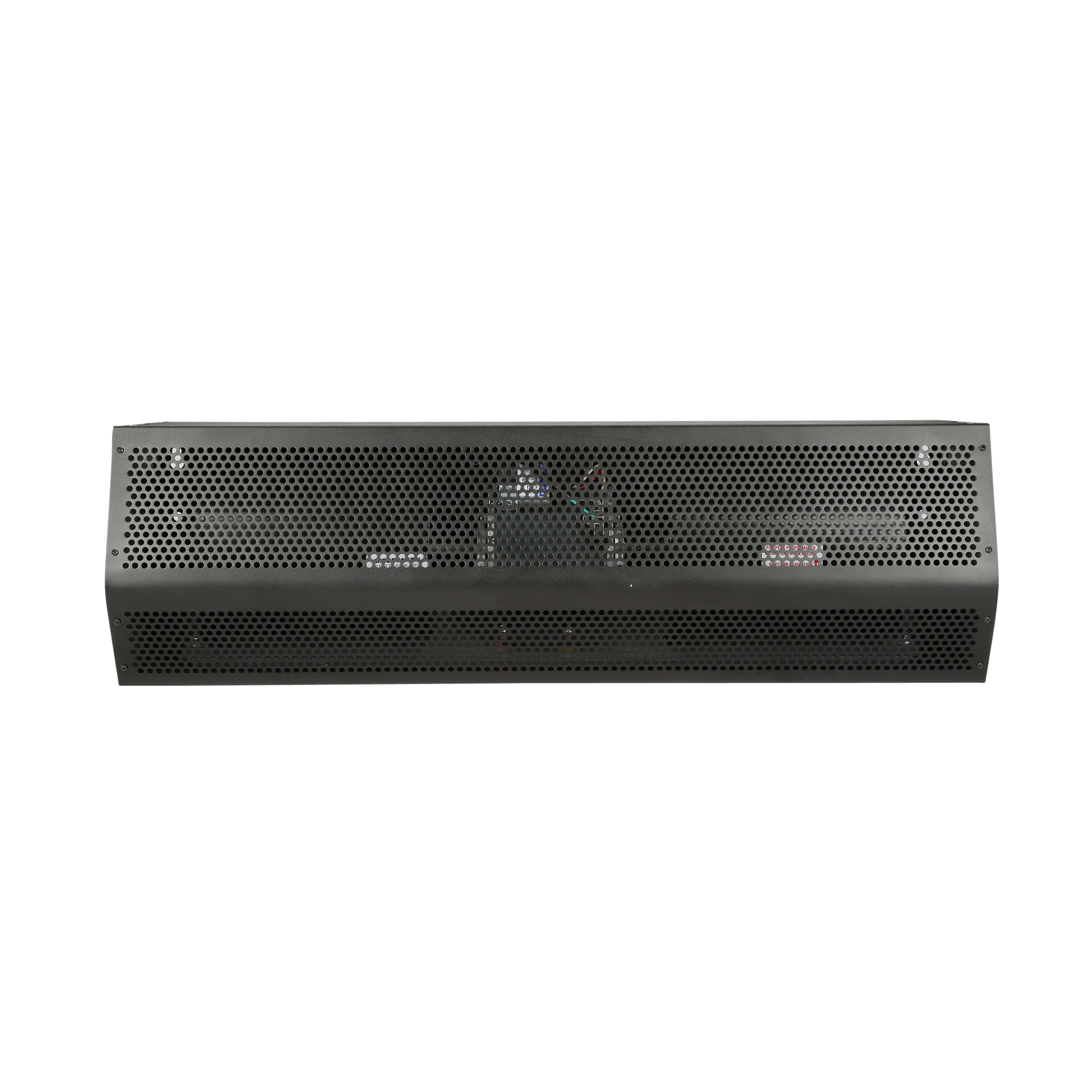

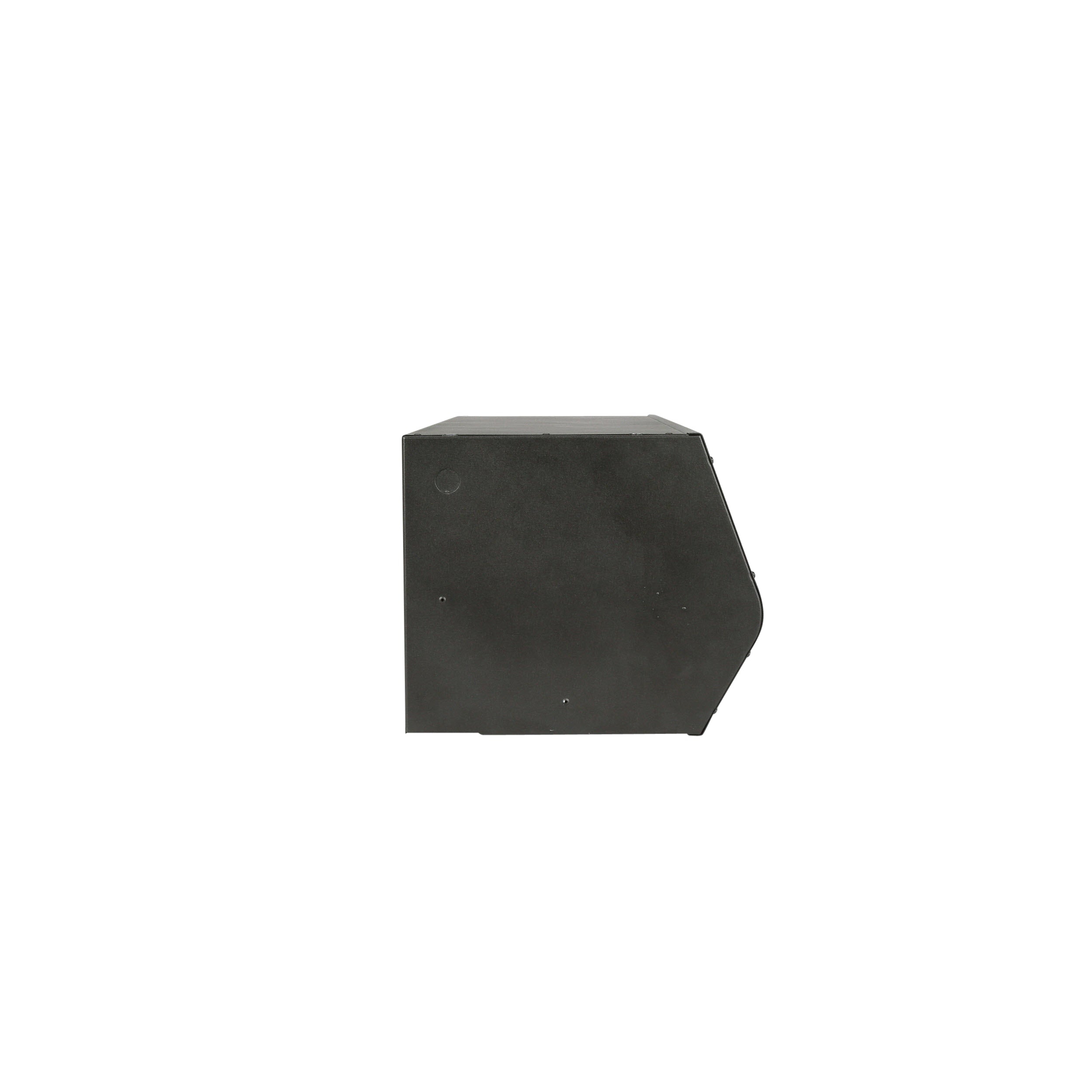

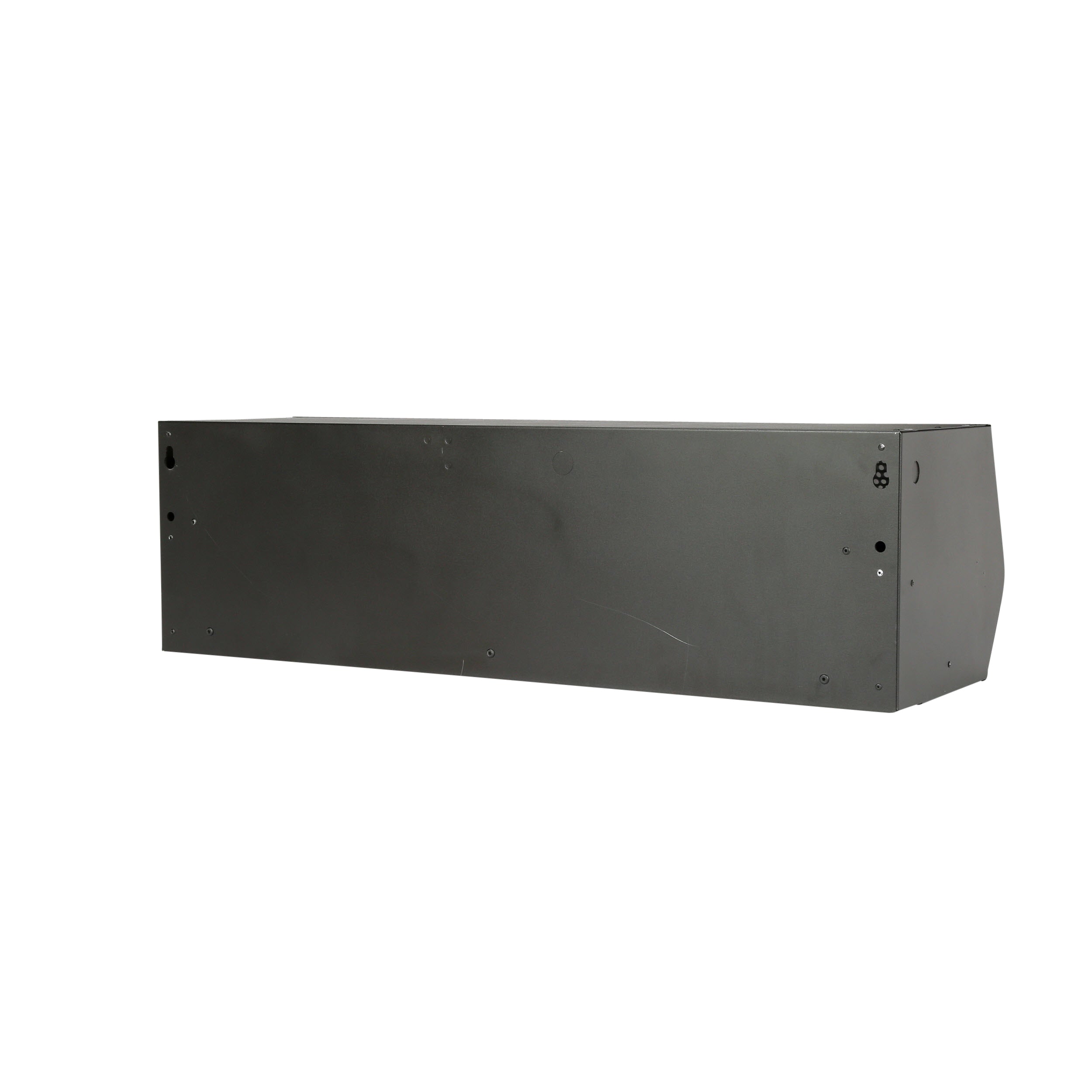

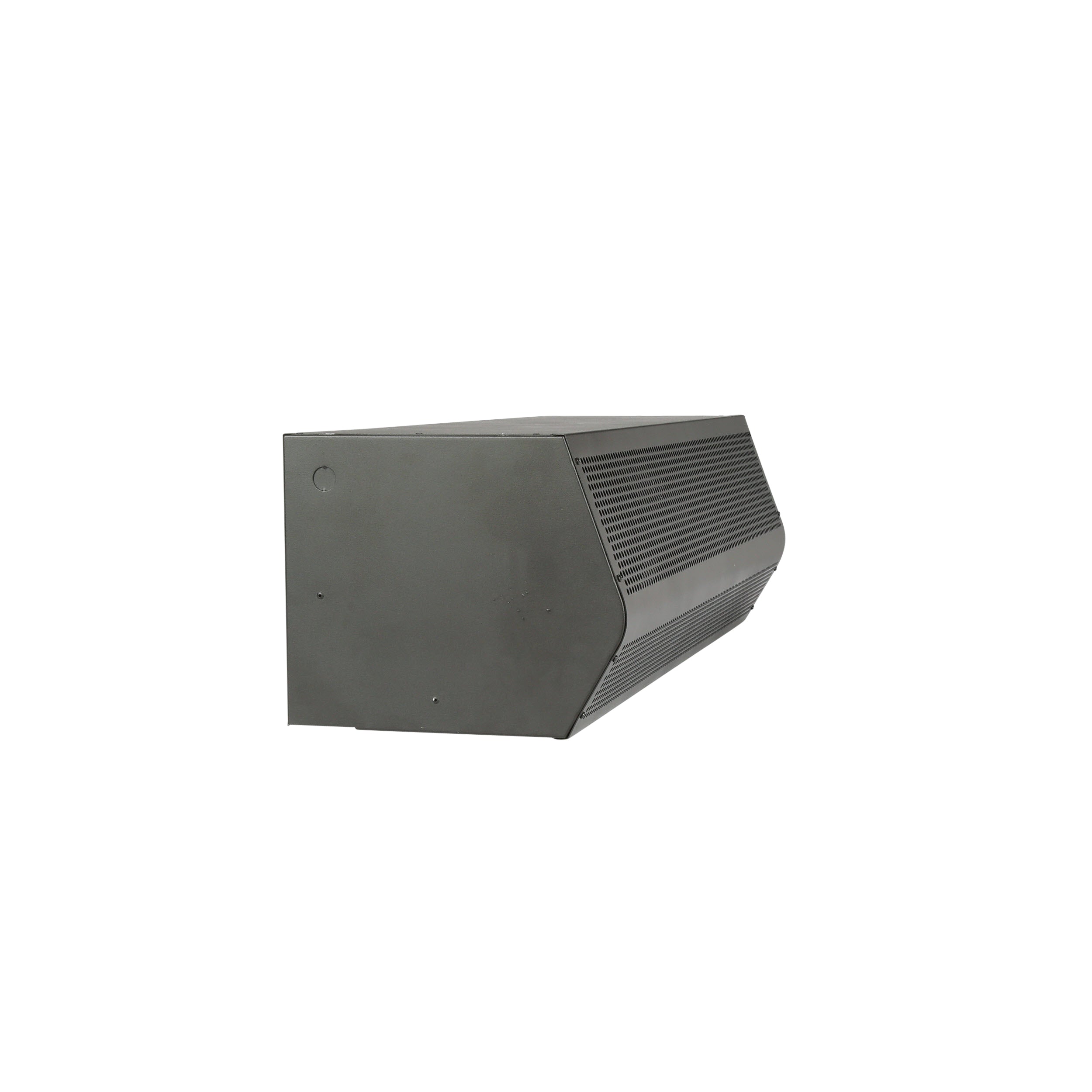

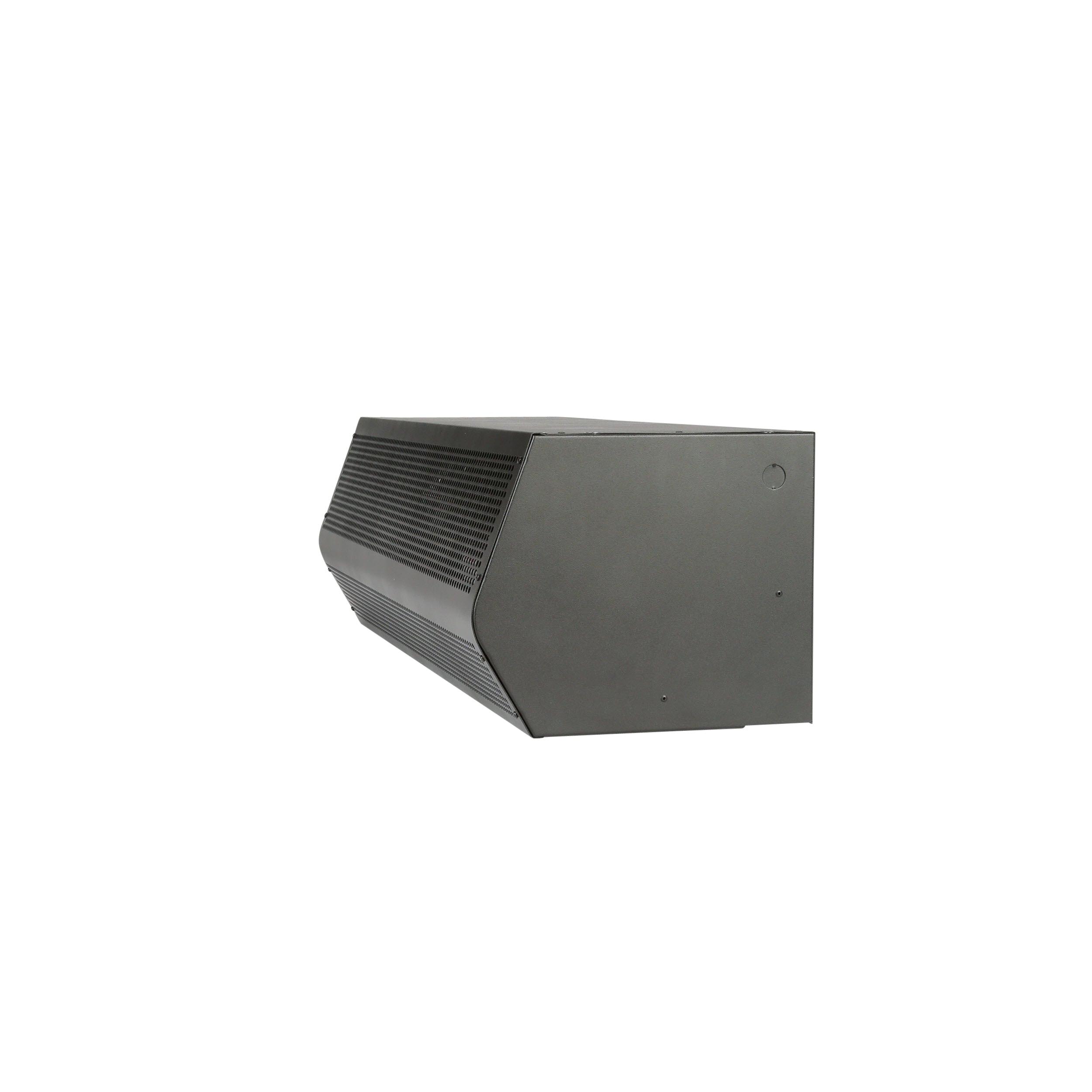

Mars STD272-2UD-OB Standard Series 2 Air Curtain 72 inches Unheated

Product Description

The MARS STD272-2UD-OB Standard Series 2 Air Curtain is a popular energy-saving series suitable for various applications. It features a 1/2 horsepower motor, ideal for customer-facing and industrial environments. Designed for insect control up to 10 feet and temperature separation up to 12 feet. The air curtain has adjustable air directional vanes and a rust-preventative powder coating.

• 1/2 HP Continuous Duty TEAO Motors
• Sleek self-contained one piece heavy gauge corrosion proof paint lock metal design
• ETL Certified to conform to UL 507 (US) and CSA 22.2 (Canada) Standards

Product Highlights

This 72" unheated air curtain reduces energy costs, maintains interior temperature, and minimizes dirt, dust, and fumes.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD272-2UD-OB
• Country of Origin: USA

Technical Specifications

• CFM: 5100 CFM
• Type: Unheated
• Brand: Mars
• Hertz: 60 Hz
• Phase: 1
• Series: Standard 2 Series (STD2)
• Voltage: 208-230V
• Amps: 5 A
• Decibels: 68
• Material: Galvanized Steel
• Horsepower: 1/2 HP
• Depth: 12-3/4 in
• Width: 72 in
• Height: 10-5/8 in
• Heating Option: Unheated
• Door Width: 72 in
• Door Height: 10 ft
• Max Door Height: 10 ft
• Manufacturers Part Number: STD272-2UD-OB
• Max. RPM: 1,750 RPM
• Motor HP: 1/2 hp
• Power Consumption: 1,000 W
• Maximum Air Volume: 2,758 cfm
• Sound Level @ 10 ft: 68 dBA
• Max. Mounting Height: 10 ft
• Maximum Air Velocity: 5,960 fpm
• Air Curtain Air Volume: 2758 cfm
• Application: Walk-In Coolers
• Motors: 2
• Power: Electric
• Volts: 208/230 Volts
• Wattage: 1,000 Watts
• Air Volume (CFM): 2758
• Max Environmental Separation Height: 12 Feet
• Max Insect Blocking Height: 10 Feet
• Unit Width (inches): 72
• Unit Height (inches): 10.625
• Nozzle Width (inches): 72
• Voltage Rating: 208-230/1/60
• dBA: 68
• Environmental - Max Height (feet): 12
• Insect - Max Height (feet): 10
• Wind Stopping Capability (MPH): 12
