MARS STD2481ECBOB Mars Air Systems Heated Air Curtain 48 inches Replacement MPN

Product Description

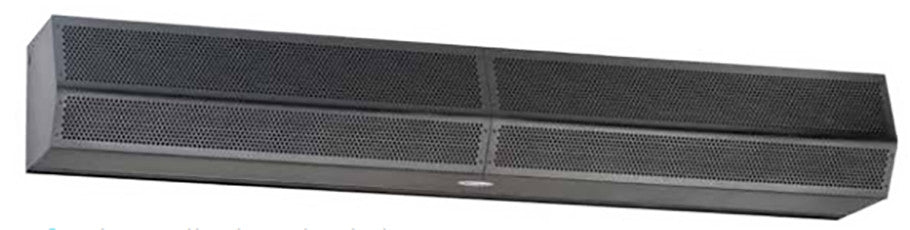

The Mars Air Systems STD248-1ECB-OB is a heated air curtain designed for effective climate control. This air curtain operates at 230 volts and is single-phase. It measures forty-eight inches and features a single half-horsepower motor. The STD248-1ECB-OB is part of the Standard Series (STD2), which offers a range of lengths for various installation needs, providing an environmental barrier up to twelve feet and insect protection up to ten feet.

• Operating voltage: 230 volts
• Height: 10.625 inches
• Flow rate: 1442 CFMs

Product Highlights

This air curtain is suitable for customer entrances, shipping doors, and cold storage areas. It includes an internal control panel and a remote thermostat for easy operation. Its powder-coated obsidian black finish allows it to blend seamlessly with different decors.

Product Information

Standard Information

• Product Type: Heated
• Max. Door Height: 12 feet

Technical Specifications

• Horsepower: 1/2 (per motor)
• CFMs: 1442
• Overall Length: 48 inches
• Weight: 100 lbs
• Height: 10.625 inches
• Depth: 17.375 inches
• Certifications: ETL Listed
