Mars STD2481EBBOB Heated Air Curtain, 48 In REPLACEMENT MPN

Product Description

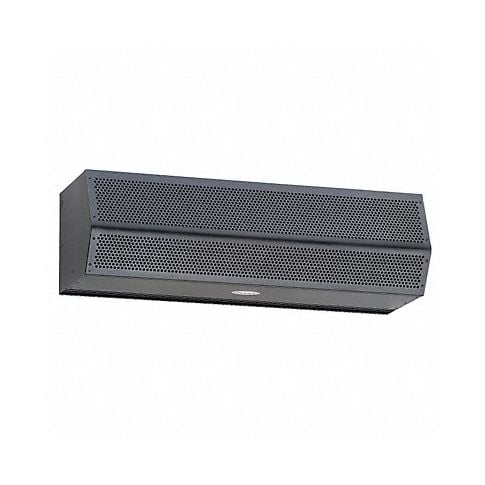

The MARS STD2481EBBOB heated air curtain provides an environmental barrier up to 12 feet and protects spaces from insects up to 10 feet. This 48-inch air curtain features a durable metal construction with a powder-coated obsidian black finish. The heated, single-phase air curtain operates at 208V and includes an internal mounted control panel and remote thermostat with heat/off/fan settings.

• Provides an environmental barrier up to 12 feet
• Protects space from insects up to 10 feet
• Stronger motor than LoPro (LPV2) series
• Helps cut utility bills
• Deters dust, flying insects, and pollutants
• Easy to install

Product Highlights

This heated air curtain helps maintain consistent temperatures, reduces loss of conditioned air, and provides a comfortable work area.

Product Information

Standard Information

• Brand: MARS
• Manufacturer Part Number: STD2481EBBOB
• Country of Origin: US

Technical Specifications

• Brand: Mars
• MPN: STD2481EBBOB
• Model: STD248-1EBB-OB
• Material: Steel, Galvanized Steel
• Width: 48 in
• Product Type: Heated
• Max. Door/Window Height (ft.): 12
• Max. Height Insect Block (ft.): 8
• Horsepower (per motor): 1/2
• CFMs: 1442
• Length (in.): 48
• Depth (in.): 17.375
• Height (in.): 10.625
• Certifications: ETL Listed
• Voltage: 208V
• Amps: 32
• Air Curtain Max. Door Width: 4 ft
• Max. Mounting Height: 10 ft
• Air Curtain Air Volume: 1442 cfm
• Air Curtain dBA @ 10 Feet: 66
• Number of Motors: 1
• Phase: 1
• Max. Amps: 31.3
• Air Curtain Item: Air Curtain
• Air Curtain Heated: Yes
• Air Curtain Air Velocity: 2550 fpm
• Air Curtain Finish: Galvanized
• Air Curtain Housing Material: Steel
• Heating kW: 6
• Hz: 60
• Housing Color: Black
• Motor Type: Permanent Split Capacitor
• Motor Enclosure: Totally Enclosed Air Over
• Motor HP: 1/2 hp
• Max. RPM: 1,750 RPM
• Number of Speeds: 3
• Requires: Door Limit Switch
• Standards: ETL
• Includes: Motor Control Panel, Thermostat
• Manufacturer: Mars
• Condensed Mfg Number: STD2481EBBOB
• Hazardous Material: N
• Green Material Flag: N
